ACCURL's 500W fiber laser cutting machine can be used to cut a wide range of materials. Fiber lasers are more effective than other laser sources for cutting highly reflective materials such as aluminum alloys, copper and brass. Varied thicknesses (up to 22 mm of mild steel) can be cut with efficiency without sacrificing quality, and the productivity will increase with thin sheet metal that requires nearly zero maintenance and 70% less cutting costs when compared to a CO2 laser cutting machine.

Applicable material

carbon steel (within 10mm), stainless steel, galvanized steel, electrolytic plate, silicon steel, aluminum, copper and other metal materials with a thickness within 5mm.

Features
  • Open type fiber laser cutting machine all in one KJG-1530 Laser Cutter
  • Applications primarily suited for cutting stainless steel, carbon, aluminum, titanium, and most non-ferrous metals
  • Fiber laser power source options from 500W, 700W, 1000W, 1500W
  • Fiber offers reduce maintenance requirements and operating costs compared to CO2
  • Position accuracy < /- 0.01mm
  • Japanese servo motors & drivers
  • Drive system X-axis ball screw drive, Y-axis square rail with rack and pinion gear
Standard Equipment
  • IPG YLS-500W Ytterbium Laser Resonator
  • Linear Driven X, U and Y Axes
  • High Rigid Frame
  • Empower or FAGOR CNC Controller
  • Precitec Cutting Head
  • Lantek Software
  • Shuttle Table
  • Chiller Unit
  • Proportional Gas and Piping System
  • Dust Filter
  • Compressor
  • Conveyor for Scraps
Specifications
Model Smart KJG-1530 / IPG 500w
Maximum cutting capacity Mild steel 6mm
Stainless steel 2.5mm
Aluminum 2mm
Copper 1mm
Laser Power YLR-500Watt IPG
Max running speed 40/min
Work piece dimensions 1500 x 3000mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 1.2G (12m/s2)
Absolute positioning accuracy ± 0.03 mm
Max. load capacity 1550 kg
Fume extractor 1000 m3/hour
Laser Cutting Head RayTools BM110 from Switzerland
Feed rate Programmable up to 30 m/min.
Applied Materials Thin mild steel, Stainless steel, Aluminum, Copper plate
Detailed Pictures

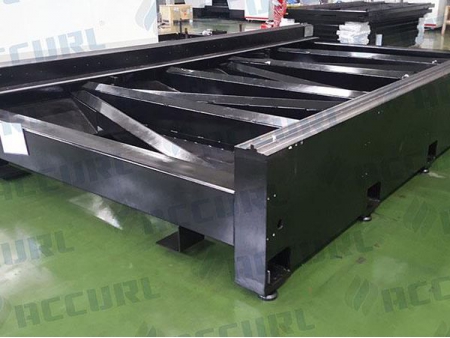

  • Framework by heat treatment

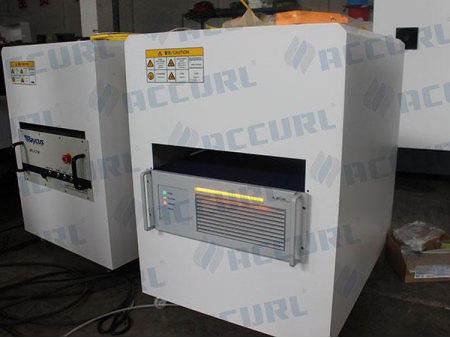

  • IPG 500w Fiber Laser Power

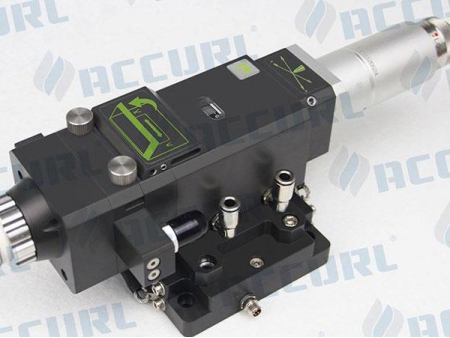

  • Laser Cutting head

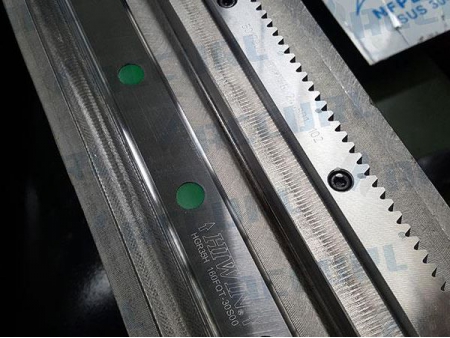

  • Linear guide and Rack

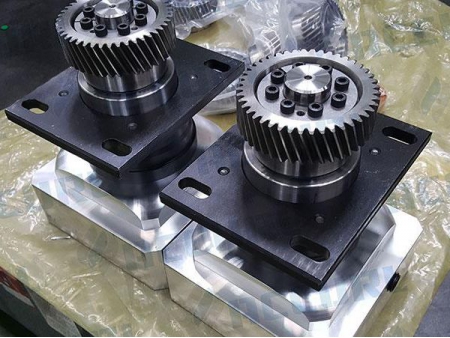

  • Shimpo reduction gears from Japan
