CNC Fiber Laser Tube Cutting Machine

CNC Fiber Laser Tube Cutting Machine
Request a Quote
Metal Cutting Machine

TE Series

Metal Cutting Machine

TE Series

TE series CNC fiber laser tube cutting machine is a cost-effective laser processing equipment that caters to the specific demands of the sheet metal processing industry for pipe processing. Unlike traditional cutting methods, laser cutting provides excellent flexibility without the need for tooling, thereby saving significant time in new product development. It boasts fast cutting speed, high precision, and the ability to achieve precise cutting of various complex and irregular shapes that are difficult to achieve using conventional methods, such as hole cutting, bevel cutting and intersecting lines. This machine is a game-changer in the industry, offering advanced technology that improves efficiency, productivity, and accuracy levels.

Applications
  • Construction piping manufacturing
  • Exhaust pipe cutting
  • Cutting of pipelines for oil and natural gas transportation
Parameters
Model TE6022 TE6035
Chuck type Pneumatic
Diameter of round tube (mm) Ø20-220 Ø20-350
Side length of square tube (mm) 20-150 20-350
Max. tube length (mm) 6000
Max. weight of single tube (kg) 170 600
Positioning accuracy (mm/m) ±0.05
Repeatability (mm) ±0.03
Max. chuck revolutions (r/min) 90
Max. idle running speed (m/min) 80
Max. acceleration (G) 0.5
Dimensions (mm) 8870×2020×2130 12600×1850×2600
Details

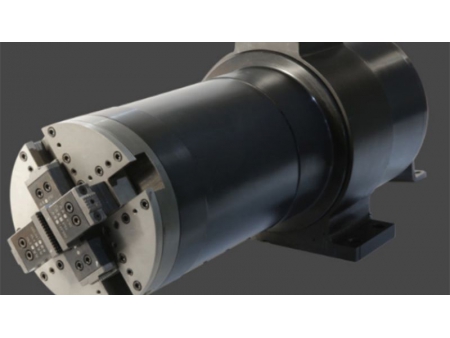

  • Double pneumatic chucks for stable and smooth operation

    Offers stable clamping force, ensuring high cutting accuracy and preventing deformation.

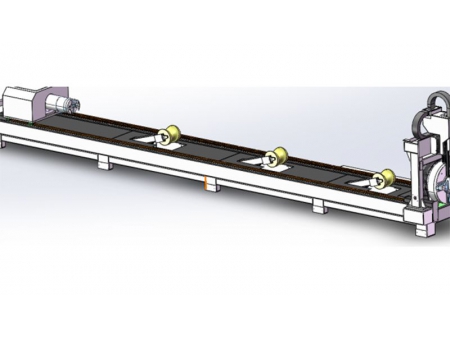

  • Gantry beam structure

    High-speed ball screw module transmission ensures stable cutting. Auxiliary support ensures easier and simpler feeding.

  • Weihong TU3000-TB software
