CNC Single Table Fiber Laser Cutting Machine
Request a Quote
Metal Cutting Machine
Future S Series
Metal Cutting Machine
Future S Series

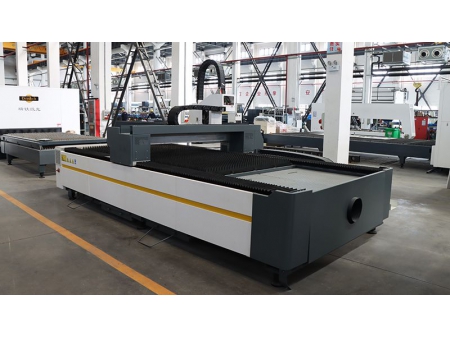

Future S series CNC single table fiber laser cutting machine comes with a compact and simple structure. In comparison to large table laser equipment with exchange worktables, it offers significant advantages in terms of size and space, providing a "small, fast, and flexible" processing approach.
Capability
Laser source: 3000W, available in 4 models
Applications
- Sheet metal cutting
- Automotive parts cutting
- Engine components cutting
- Cutting for construction & architecture
- Processing of aluminum curtain walls
- Enclosure/Cabinet bending processing
- Kitchenware bending
- Processing of agricultural machinery components
Parameters
| Model | |||||
| Cutting range (mm) | 3000*1500 | 4000*1500 | 4000*2000 | 6000*2000 | 6000*2500 |
| X axis stroke (mm) | 1550 | 1550 | 2050 | 2050 | 2550 |
| Y axis stroke (mm) | 3050 | 4050 | 4050 | 6050 | 6050 |
| Z axis stroke (mm) | 120 | ||||
| X/Y axis positioning accuracy (mm/m) | ±0.03 | ||||
| X/Y axis repeat positioning accuracy (mm/m) | 0.02 | ||||
| Max. positioning speed of X/Y axis (m/min) | 100 | ||||
| Max. acceleration speed (g) | 1.1 | ||||
| Laser source power (W) | ≤6000 | ||||
Details
- High-strength main frame
The machine adopts an integral gantry structure with a high-strength steel welded bed, which undergoes annealing and stress relief treatment, ensuring high rigidity and minimal deformation.

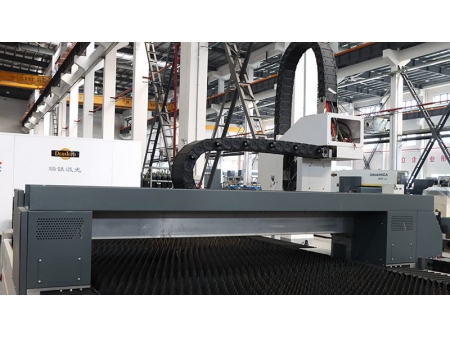

- Aviation-grade specially formed aluminum beam
The beam base and Z-axis slide plate features a high-strength cast aluminum integrated molding design, offering light weight, compact structure, high precision, and quick response.
- Weihong NcStudio-V15 CNC System
