Cast Iron V-block

Request a Quote

View All: http://tooljd.com/2019/6-1-cast-iron-v-block.html

This product has been discontinued and removed from our shelves.

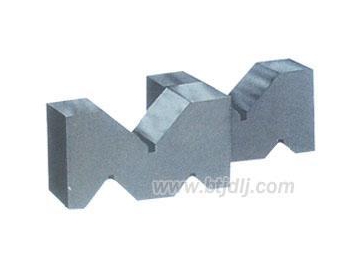

This type of precision V-block adopts the high strength cast iron HT200-300. Apart from the inspection, revising, and scribing of axles or precision shaft parts. It is also suitable for inspecting the verticality and parallelism of workpiece. Moreover, our cast iron vee block can be utilized for the clamping in the mechanical processing.

Remark: this vee block sets are supplied in pairs.

We can provide you with 2 kinds of specifications as below

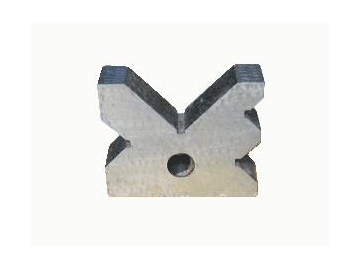

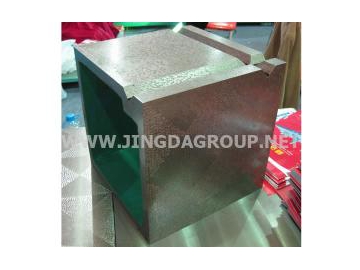

This type of V-block applies the hollow design, which allows for weight reduction. Thus, it is conveniently used for inspection and revising.

This type of V-block applies the hollow design, which allows for weight reduction. Thus, it is conveniently used for inspection and revising.

Parameters

Size(mm)	Flatness of Working Surface			Parallelism Between the V Groove and Bottom Surface			Parallelism Between the V Groove and Side Face			Degree of Symmetry Between V Groove and Two Side Faces			Verticality between the V Groove and End Face
	Precision Grade(μm)
	0	1	2	0	1	2	0	1	2	0	1	2	0	1	2
100×100×80		3	5		15	25		15	25		30	50
150×150×80		4.5	6.5		15	25		15	25		30	50
200×200×90		5	8		20	30		20	30		40	60
300×300×120		10	12		30	40

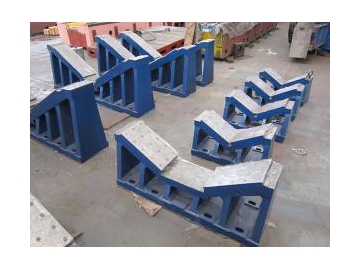

Additionally, we can custom-tailor the following two types of V-blocks according to your drawing.
