Magnetic Tools

Vee blocks for holding round or irregular shaped workpieces in grinding, measuring and machining applications

Securing cylindrical or irregularly shaped workpieces during precision operations can be challenging. Magnetic V blocks provide a stable and reliable holding solution for grinding, drilling, measuring, and machining. These precision-machined blocks are typically used in pairs to ensure accurate positioning and firm clamping, making them essential tools in inspection labs, machine shops, and metalworking facilities.

Specifications

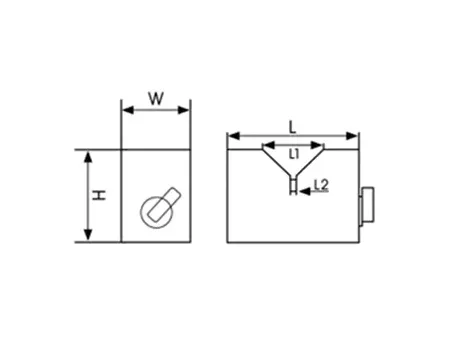

Model Holding force (N) Applicable diameter (mm) Dimensions (mm) Weight (kg)
W L L1 L2 H
SWF4001 150 50 37.5 70 28 3 50 1
SWF4002 200 80 47 100 58 3 80 3
SWF4003 230 120 47 150 103 3 100 5
Features
  • Available in different magnetic holding strengths, allowing for flexible use based on workpiece size and weight.
