Checkweigher

Request a Quote

View All: http://papamachine-en.com/6-1-checkweigher.html

Automatic weighing system for verifying the weight of products

Measurement Strain gauge
Rejection Air jet/flapper/falling drop
Operation Touch screen
Alarm Buzzer and lamp
Max. belt speed 60m/min
Power supply AC110V/220V 50-60Hz
Rated output Approx. 100W
Dimensions (L×W×H) 85×520×1350(-100)mm
Weight Approx. 97kg

With the checkweigher in your production line, you can be confident that every product meets the correct weight standards. This system automatically weighs each item and removes any that don’t match the required weight, ensuring only the right ones move forward. Whether you’re running a bar production line or handling other food products, this ensures consistency and quality without manual checks.

Keep your production efficient and compliant with weight regulations. Add this checkweigher to your line and maintain accuracy with ease.

Features

Durable Stainless Steel Structure: Stainless steel build with a waterproof design for longevity.
High-Precision Weighing Sensor: Uses advanced DSP technology for accurate weight verification.
Automatic Compensation & Zero Tracking: Ensures consistent and reliable weight measurements.
100 Product Presets: Easily edit and recall saved settings for different products.
Quick Product Switching & Speed Adjustment: Streamlines operations for efficiency.
2000 Classification Records: Stores extensive data with printer-ready output for documentation.

Components

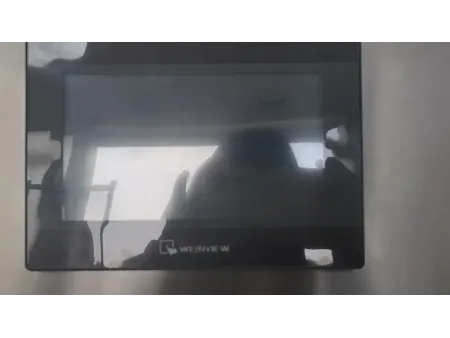

Touchscreen

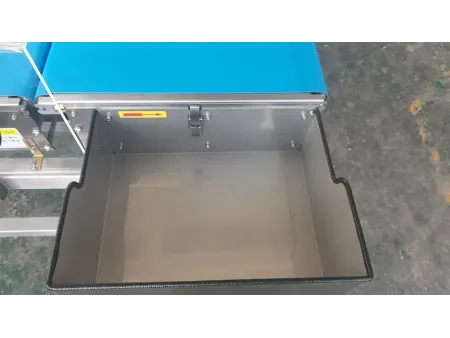

Collection box for foods with non-compliant weight

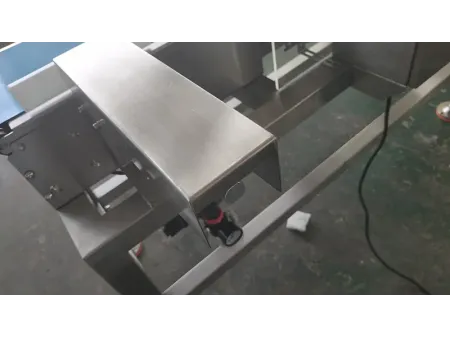

Baffle

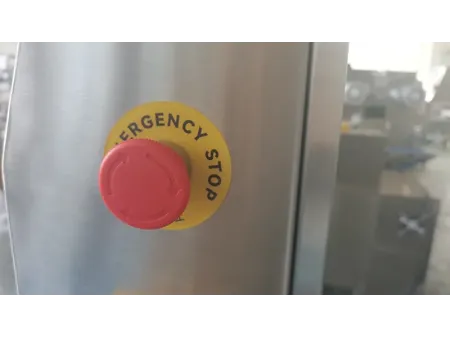

Emergency stop button
