Chocolate Enrobing and Cooling Machine
Chocolate Machinery

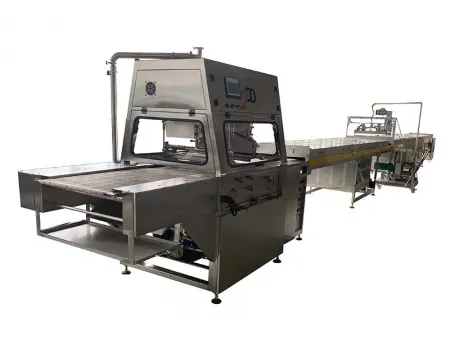

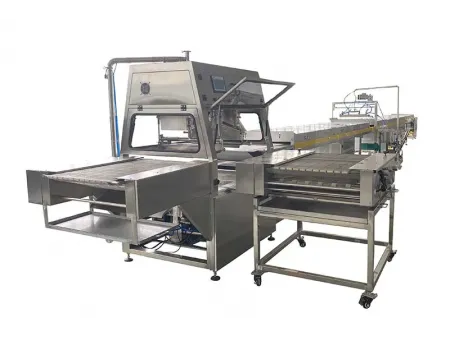

Enrobing machine with cooling tunnel for coating food products with chocolate
A high-efficiency solution for chocolate-coated products like candy, energy bars, brittles, cookies, biscuits, cakes, and bread, our industrial chocolate enrobing production line ensures consistent results.
This system includes a chocolate enrobing machine and a cooling tunnel, allowing you to apply multiple layers of chocolate coating with precision. Your products pass through a smooth “chocolate waterfall” for even coating, then through an air curtain and vibration plate to remove excess chocolate before entering the cooling tunnel for solidification.
- Chocolate covered biscuit
- Chocolate covered waffle
- Chocolate protein bar
- Chocolate protein ball
- Chocolate glazed donut
- Chocolate covered date
- Chocolate berry
- Chocolate raspberry
- Chocolate mochi
- Chocolate nuts
| Model | ||||
| Belt width | 400mm | 600mm | 900mm | 1200mm |
| Belt speed | 1-10m/min | 1-10m/min | 1-10m/min | 1-10m/min |
| Cooling tunnel length | 10m | 14m | 20m | 24m |
| Refrigerator unit | 2 sets | 3 sets | 4 sets | 5 sets |
| Tunnel temperature | 2-10°C | 2-10°C | 2-10°C | 2-10°C |
| Total power | 12.1kW | 20.8kW | 23.8kW | 27.8kW |
| Weight | 2000kg | 2450kg | 3400kg | 4100kg |
| Dimensions | 14200×950×1800mm | 18200×1150×1800mm | 24200×1450×1800mm | 28250×1750×1800mm |
- Simple linear structure for easy installation and maintenance.
- Equipped with high-quality pneumatic, electrical, and operational components from globally recognized brands.
- Removable material tank for effortless cleaning and precise temperature control.
- Photoelectric liquid level control for accurate monitoring.
- Speed regulation with frequency control for smooth operation.
- 3.2m cooling tunnel
- 6m cooling tunnel
- 10m curved cooling tunnel
To address the challenge of expanding chocolate production capacity with limited factory space, we provide customized chocolate cooling tunnel solutions according to each customer’s actual production environment.
The width, length, structural design, and appearance of the cooling tunnel can all be customized. Even in limited spaces, the tunnel delivers efficient, stable, and visually appealing performance. The customization helps customers smoothly upgrade their production from manual operations to semi-automatic or fully automated production within confined workshop environments.
At present, we provide highly flexible custom chocolate cooling tunnel solutions based on different production capacities and space conditions.
- Cooling tunnel widths: 200mm / 300mm / 400mm / 600mm / 800mm / 900mm / 1200mm
- Cooling tunnel lengths: 3.2m / 4m / 5m / 6m / 8m / 10m / 14m (Customized length is available according to the customer’s site space and production capacity requirements.)
- To improve production visibility and the operator experience, the cooling tunnel can optionally be equipped with a transparent glass enclosure, allowing the cooling status of the product to be easily observed during the process, which simplifies quality monitoring and process adjustments.
- At the same time, we also provide a detachable and modular cooling tunnel design, which is particularly suitable for:
- 1.Workshops with limited space
- 2.Situations requiring transportation through elevators or narrow passages
- 3.Customers planning future production expansion or layout adjustments
The detachable and modular design not only facilitates transportation and installation, but also provides greater flexibility for future production upgrades.
Can you arrange the delivery of the chocolate enrobing machine to my address?
Why choose our chocolate enrobing machine?
- Constructed with stainless steel and a food-grade belt to ensure safety and hygiene.
- Proven durability and stability, trusted by customers worldwide.
- One-year warranty and lifetime service, providing long-term support.
- A dedicated sales team focused on finding the right solution for your needs.
- A wide selection of models, four compact and four industrial sizes—to suit different production requirements.
