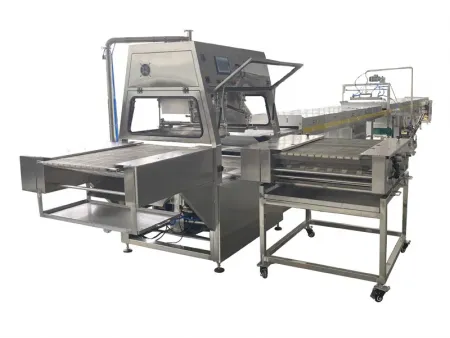

Chocolate Enrobing Line
Automatic production line for biscuits and food products coated with chocolate
The chocolate enrobing line is designed to produce a wide variety of chocolate-coated products, such as candy, candy bars, energy bars, rice crisps, cookies, biscuits, cakes, and breads. This line can handle multiple types of chocolate coatings, creating one or more chocolate "waterfalls" for consistent and even coverage. After passing through the chocolate falls, the products move into a cooling tunnel to set the coating. Excess chocolate is removed via air knives and vibrating plates, ensuring a neat, professional finish.
Our chocolate enrobing lines include enrober machines and cooling tunnels with belt widths ranging from 400mm to 1200mm, and cooling tunnel lengths from 10 meters to 24 meters. This flexibility allows you to customize the line to your specific production needs.
- Chocolate date
- Chocolate biscuit
- Chocolate protein bar
- Chocolate protein ball
- Chocolate covered nuts
- Chocolate bar
- Chocolate covered berry
- Chocolate glazed donut
- Chocolate covered waffle
| Model | ||||
| Belt width | 400mm | 600mm | 900mm | 1200mm |
| Belt speed | 1-10meter/min | 1-10meter/min | 1-10meter/min | 1-10meter/min |
| Cooling tunnel length | 10meter | 14meter | 20meter | 24meter |
| Refrigerator unit | 2 | 3 | 4 | 5 |
| Refrigerator | DANFOSS | DANFOSS | DANFOSS | DANFOSS |
| PLC/Touch screen | Hpmont | Hpmont | Hpmont | Hpmont |
| Voltage | 380V,three phase | 380V,three phase | 380V,three phase | 380V,three phase |
| Power | 12.1kW | 20.8kW | 23.8kW | 27.8kW |
| Dimensions | 14200×950×1800mm | 18200×1150×1800 | 24200×1450×1800 | 28250×1750×1800 |
| Weight | 2000kg | 2450kg | 3400kg | 4100kg |
- Equipped with an automatic separation system to handle slightly sticky products, as well as an automatic alignment system. Optional conveyor automatic deviation correction is also available.
- Materials are neatly arranged and fed into the arranging module for orderly processing, ensuring smooth transport, accurate positioning, and high-speed stability.
- The sorting conveyor belts can be quickly removed without tools, and crumb trays are installed below the belts and at junctions, making maintenance and cleaning more convenient and efficient.
- The conveyor belt features a blue food-grade non-stick surface, with white options available.
