Truck Mounted Crane SQ5

Request a Quote

View All: http://cn-changlin.com/6-1-truck-mounted-crane-sq5.html

Our SQ5 truck mounted crane is a straight boom crane with worm gear reducer. Thanks to the worm gear reducer, the truck crane is able to rotate at 360°.
This lifting equipment has a manual horizontal outrigger whose full span is 5m.
Hexagon section provides our truck mounted crane with good lateral stability.
The operating levers are distributed near the cab and are able to achieve both-side operation.
Our goods handling machine is equipped with 6-function manual main control valve to control the rotation, telescoping, working range, lifting of the boom and the telescopic movement of the vertical outrigger cylinders.
Standard configuration of our truck mounted crane includes the height limit switch, over winding alarm device and high power LED lights. Moment limiter is optional to be configured to this engineering vehicle to enhance operating safety.

Technical Parameters

Order	Item			Unit	Parameter
1	Maximum load moment			kN·m	125
2	Maximum lifting load			kg	5000
3	Maximum working height			mm	8600
4	Boom length (fully retracted)			mm	3725
5	Maximum lifting height (from the ground)			mm	About 10800
6	Lifting ratio				4
7	Maximum elevation angle of boom			(°)	77
8	Minimum elevation angle of boom			(°)	0
9	Lateral span of the front outrigger			mm	2235~5005
10	Lateral span of the rear outrigger			mm	-
11	Maximum lifting speed	Main hook (single rope)	Lifting	m/min	37.6
			Lowering		37.6
12	Rotation speed			r/min	≤2.5
13	Rotation angle			°	360° full rotation
14	Crane weight			kg	2000
15	Fuel pump			-------------	Gear pump
16	Fuel tank capacity			L	100
17	Working pressure of hydraulic system			MPa	23
18	Flow of hydraulic system			L/min	40

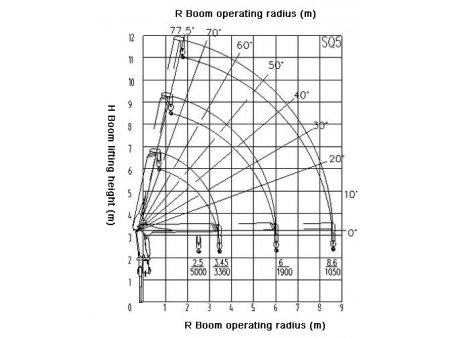

Rated Lifting Capacity of Truck Mounted Crane (Unit: kg.f)
