Request a Quote
  • Available with different voltage electromagnetic coils, the valve can be tailored to various applications and power supplies, enhancing its versatility
  • Both proportional and switchable valve types can be selected to suit specific operational needs, providing precise control over hydraulic cylinder movements
  • An emergency feature ensures that operations remain safe and reliable, even in unexpected situations, contributing to workplace safety
  • The valve can be customized according to specific client demands, ensuring that each solution perfectly matches the intended application
Applications
  • Scissor lifts & aerial work platforms
Parameters
Rated pressure (MPa) 25
Rated flow (L/min) 20
Pressure range of overflow valve (MPa) 6~18
Working voltage of solenoid valve (V) 20VCD±15%/24VCD±15%
Hydraulic oil Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃) -20~100
Viscosity range (mm2/s) 10~380
Fluid cleanliness Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10
Weight (kg) 1.4/2

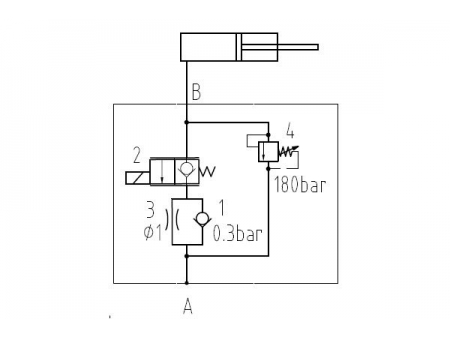

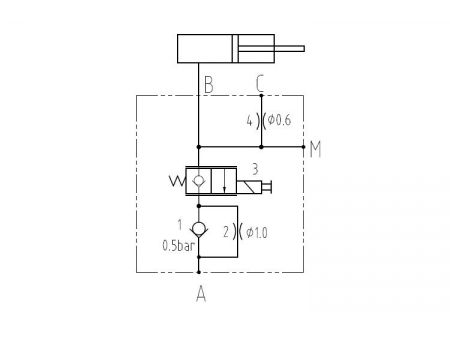

Hydraulic System Schematic Diagram

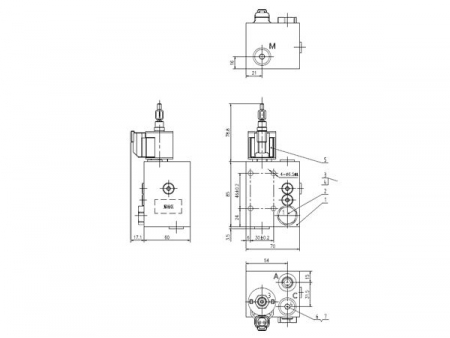

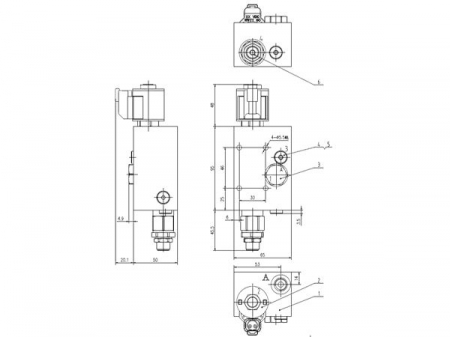

External Connection Dimensions

Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components

Annual production capacity of 250,000 sets of hydraulic components

Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
