CV32 Logic Control Valve

Request a Quote

View All: http://controlvalvemaker.com/6-9-logic-control-valve.html

Designed for load-sensitive and variable systems, the CV32 offers precise logic control, adjusting fluid dynamics in real time to match operational demands
It seamlessly coordinates between a steering variable pump and a working system's fixed pump, with automatic flow division for optimal efficiency
Features a low-pressure unloading capability for fixed pumps, significantly reducing operational energy consumption
Equipped with a high-pressure unload valve function, enhancing system safety and efficiency by managing pressure peaks effectively

Applications

Parameters

Rated pressure (MPa)	31.5
Rated flow (L/min)	350 (maximum flow: 400L/min)
Differential pressure (MPa)	1.5-2
Hydraulic oil	Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃)	－20～100
Viscosity range (mm2/s)	10～380
Fluid cleanliness	Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10
Weight (kg)	18

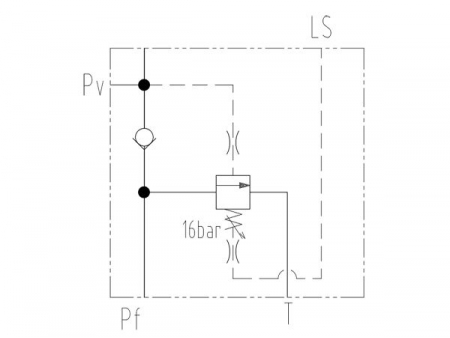

Hydraulic System Schematic Diagram

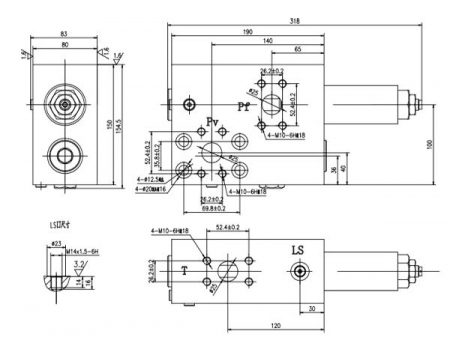

External Connection Dimensions
