Adjustable Orchard Mower

Request a Quote

View All: http://farm-harvester.com/6-2-2-adjustable-orchard-mower.html

Description

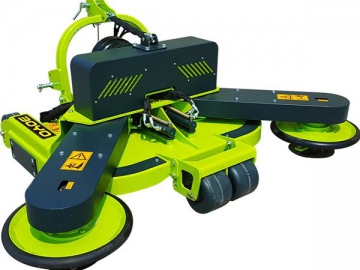

The 9GT adjustable orchard mower is easily matched to tractors with 40 to 90 horsepower. With a rear suspension operation, the cutting width can be steplessly adjusted within the cutting width range, giving it an excellent adaptability to various cutting row spaces.

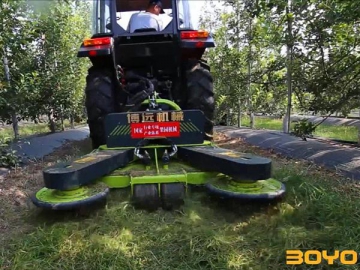

This orchard mower is widely used in mowing and pruning applications in orchards, gardens, meadows, grasslands, green fields and other fields, and is suitable for orchard grass, dense grass and weeds.

Parameters

Item	Unit	9GT-1220	9GT-2036
Cutting width	mm	1200-2000	2000-3600
Stubble height	mm	40--100	40--100
Flail knife number	pc	8	8
Side cutter diameter	mm	450	900
Matching tractor	Horsepower	40--80	50--90
Tractor output speed	r/min	540	540
Whole machine weight	kg	450	780

Features of 9GT orchard mower

This orchard mower has an adjustable cutting width which can be adjusted steplessly within the width range. It is also highly adaptable to various working row spaces.
With an outstanding mowing effect, the stubble height is 40mm.
This adjustable mower has a compact structure, small turning radius and convenient operation.
This mower features a reliable performance and high working efficiency.
