Request a Quote

Fully automatic adjustable CZ purlin machine is a fully automatic roll forming system to produce C and Z purlins, featuring automatic changeover. This purlin former provides C purlins within the width range of 80-300mm and Z purlins with a width of 100-300mm.

Features
  • Changeover within 1 minute for different production sizes.
  • Size change without removing rollers or spacers
  • Optional punch hole at any position of purlin
Samples
Profile Drawing
Specifications
Model C80-300/Z100-300
Dimension 7800*1700*1600mm
Hydraulic Motor Power 22kW
Forming Steps 13Steps 3Steps for reshaping
Forming Speed 8m/min,16m/min,25m/min
Voltage 380V/50HZ/3PH
Effective Width C:80-300mm Z:100-300mm
Flange Height of Purlin C:40-100mm Z:50-100mm
Lip of C/Z Purlin 10-20mm
Material Thickness 1.2-3.0mm
Control System PLC control
Rollers Gcr15 steel with heat treatment,plate hard chrome on the surface of rollers
Material for Shaft 40Cr steel
Material for Puncher Cr12Mov
Material for Cutter Cr12Mov
Details
  • Punching system with 4 cylinders, available for single hole and double holes

  • Rollers are manufactured from high quality bearing steel GCr15 and are processed with CNC lathes and heat treatment. Hard-chrome coating or black coating is optional. With a feeding material guide roller, body frame is welded with 400# H type steel.

  • Punching system is specially designed for C purlin to achieve automatic punching and improve the processing efficiency.

  • With pre-cutting system and post cutting system, there is no need to change cutter for different sizes.

Main Accessories
  • Main Purlin Forming Machine
  • 3 Tons Manual Uncoiler
  • Automatic Guide Device
  • Automatic Reshaping Device
  • PLC Computer Controlling System With Touch Screen ( Brand: Schneider )
  • Hydraulic Motor System
  • Pre-punching Holes Device( the buyer decide the size of punching holes )
  • Pre-cutting Device (Available to add post-cutter)
  • Run Out Table
  • Operation Manual

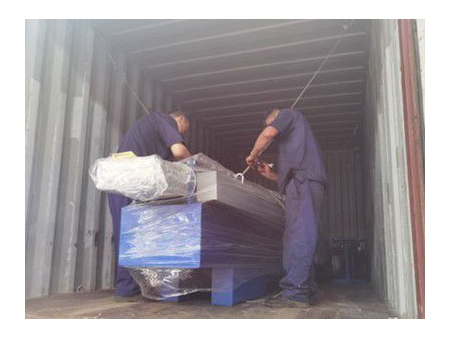

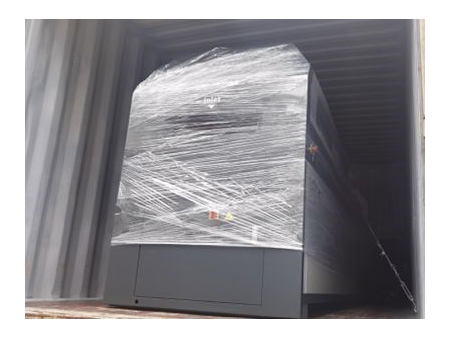

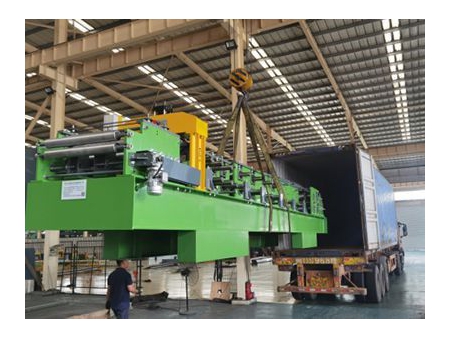

Transportation Package
