325W~335W High Efficiency Monocrystalline Solar Panel
Request a Quote
View All: http://shanghaielectric-smec.com
Electrical performance test (standard test conditions)
Electrical performance test (nominal operating cell temperature)
Temperature parameters of the monocrystalline solar module
Allowable working conditions
Specifications of the monocrystalline module
Packaging method
| Model | RSM72-6-325M | RSM72-6-330M | RSM72-6-335M |
| Max power (W) | 325 | 330 | 335 |
| Max power tolerance | 0~3% | 0~3% | 0~3% |
| Max voltage (V) | 37.20 | 37.60 | 37.90 |
| Max current (A) | 8.73 | 8.78 | 8.83 |
| Open-circuit voltage (V) | 46.10 | 46.30 | 46.70 |
| Short-circuit current (A) | 9.25 | 9.29 | 9.32 |
| Optical conversion efficiency | ＞16.9% | ＞17.10% | ＞17.4% |
| Model | RSM72-6-325M | RSM72-6-330M | RSM72-6-335M |
| Max power (W) | 237.6 | 241.3 | 244.9 |
| Max power tolerance | 0~3 % | 0~3% | 0~3% |
| Max voltage (V) | 34.40 | 34.60 | 34.90 |
| Max current (A) | 6.91 | 6.97 | 7.02 |
| Open-circuit voltage (V) | 43.10 | 43.30 | 43.40 |
| Short-circuit current (A) | 7.48 | 7.53 | 7.58 |
| NOCT (nominal operating cell temperature) | 45℃±2℃ |
| Temperature parameter of open-circuit voltage (ß) | -0.32% /℃ |
| Temperature parameter of short-circuit current (ɑ) | 0.05% /℃ |
| Temperature parameter of module power | -0.39% /℃ |
| Max voltage | 1000 V (DC) |
| Working temperature | -40℃~ 85℃ |
| Max load capacity (module surface) | 5400Pa (IEC61215) |
| Impact resistance capacity | max diameter: 25m; max impact velocity: 23m/s |
| Solar cell | monocrystalline, 156×156mm (6×12), 4BB |
| Junction box | IP67, 3 diodes |
| Tempered glass | 4.0mm |
| Connecting cable | compatible with MC4 interface; 4m㎡; the cable length is 1200 mm |

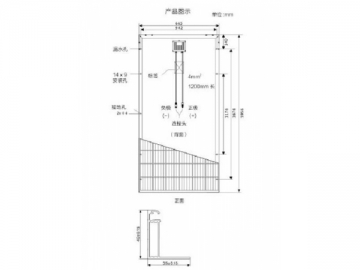

| Aluminum frame | 1956×992×40 mm |
| Weight | 24.0kg |
| Vehicle | 17.5m truck |
| Thickness of module | 40mm |
| Pieces /boxes | 23 |
| Panels | 1150 |
