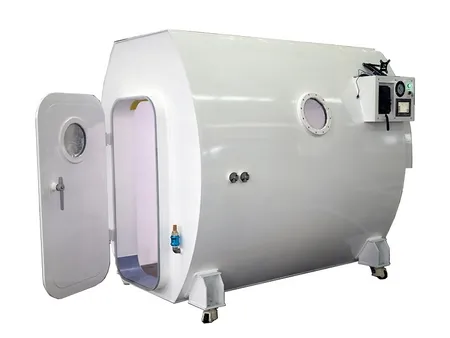

Animal Hypobaric Experimental Chamber
HYPOBARIC CHAMBERS FOR ANIMALS
- Minimum working pressure-0.08MPa (0.2ATA)
- Applicable animalCat, dog, rabbit, mouse, etc.
Animal hypobaric experimental chamber is designed to simulate low-pressure, low-oxygen environments equivalent to altitudes of up to 8000 meters. The internal pressure can be precisely adjusted to meet specific research needs, making it suitable for studying altitude-related physiological responses, hypoxia, and disease modeling. It supports a wide range of animal types, including rabbits, dogs, and cats, and is widely used in laboratory settings for environmental adaptation and pharmacological testing.
The hypobaric oxygen environment control system is designed to replicate the key characteristics of high-altitude conditions such as low atmospheric pressure and reduced oxygen concentration. By creating a stable low-pressure environment, the chamber enables accurate simulation of hypoxic conditions found at high altitudes.
This hypobaric system supports a wide range of research applications, including high-altitude medicine, cerebral edema studies, and various low-pressure-related scientific investigations. It is an essential tool for laboratories studying the physiological and pathological effects of hypoxia in controlled animal experiments.
| Chamber dimensions (L×W×H) | 2400×1550×2020mm |
| Apparatus cabinet dimensions (L×W×H) | 1200×500×2300mm |
| Chamber weight | 2000kg |
| Voltage | AC 220V |
| Power | 3kW |
| Standard | GB150.1-4-2011 |
| Minimum working pressure | -0.08MPa (0.2ATA) |
- From initial design to final inspection, every animal experimental chamber is manufactured under strict quality control procedures. The system is equipped with an emergency shut-off and automatic pressure relief system to ensure safe operation in all conditions.

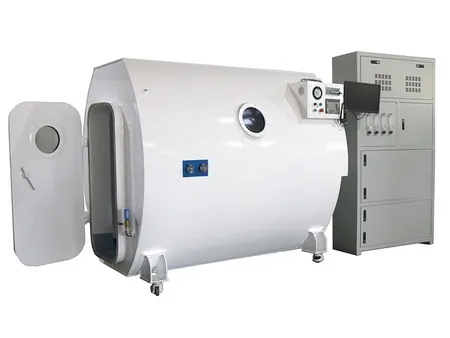

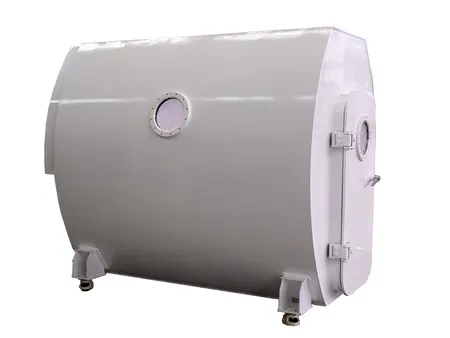

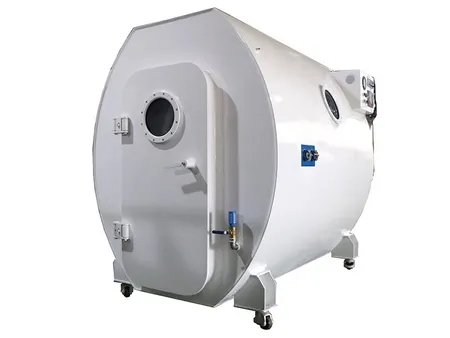

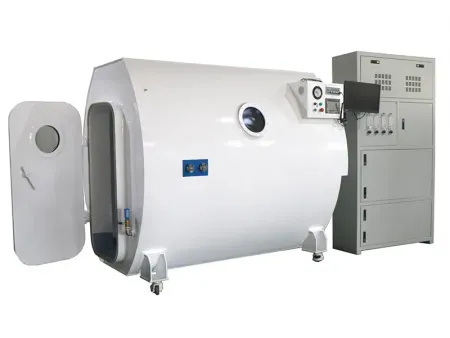

- The chamber features a durable carbon steel structure, built for stability and long-term use. It includes lockable caster wheels for convenient mobility within laboratory environments. The spacious interior is equipped with a video monitoring system for real-time observation of animal behavior and chamber conditions.

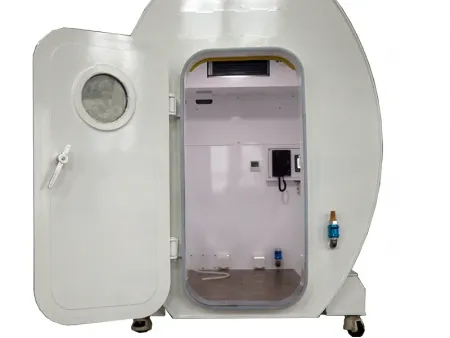

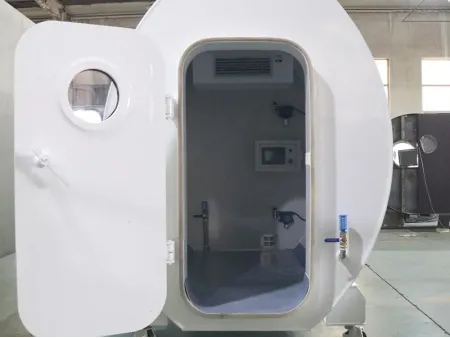

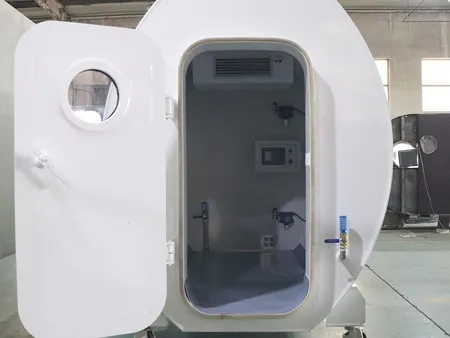

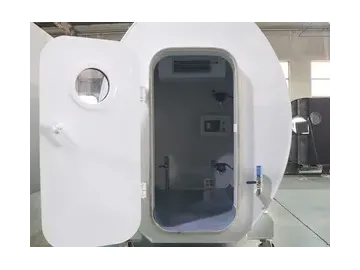

The chamber features a large rotating door to allow easy access for animals entering and exiting the chamber, enhancing operational convenience.

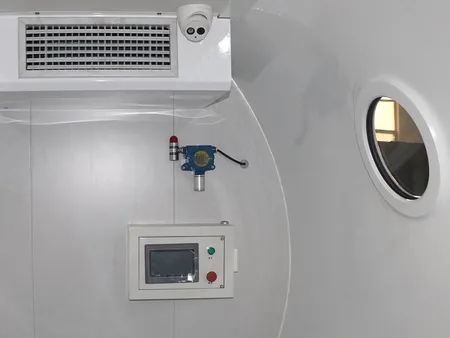

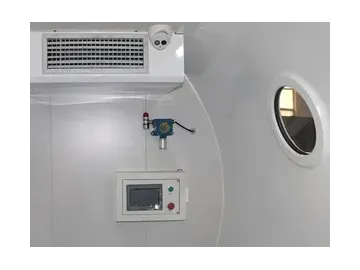

Equipped with internal and external control interfaces, the hypobaric experimental chamber features a clear, user-friendly layout and high-precision programmable controls to ensure data accuracy. It supports dual-side operation and monitoring of the chamber. An integrated air conditioning system allows adjustment of internal temperature and humidity to maintain a stable research environment.
Huaxin offers flexible customization to meet specific research needs. Pressure range, chamber dimensions, and exterior design can all be tailored according to user requirements. Additional functional upgrades are also available upon request.
