HYPERBARIC CHAMBERS FOR ANIMALS
Hyperbaric chamber for animal experimentation and veterinary clinical research under hyperbaric oxygen conditions
- Minimum working pressure0.5MPa (6.0ATA)
- Applicable animalCat, dog, rabbit, mouse, etc.

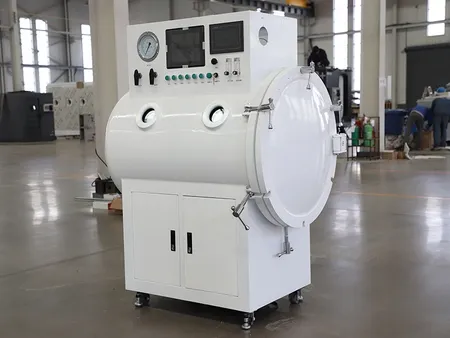

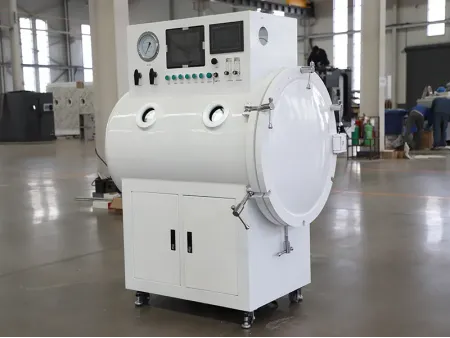

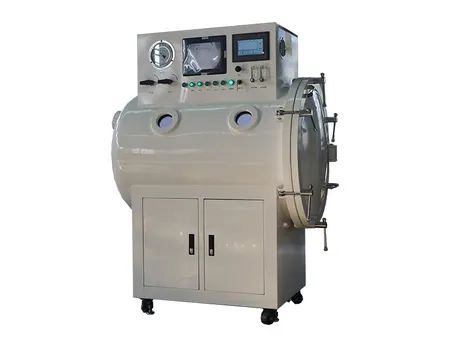

Animal Hyperbaric Experimental Chamber
Request a Quote
Animal hyperbaric experimental chamber is designed to simulate a controlled high-pressure, high-oxygen environment suitable for scientific research and veterinary studies. Oxygen concentration is automatically regulated to ensure even gas distribution throughout the chamber. It is ideal for conducting experiments on small to medium-sized animals such as dogs, cats, and rabbits, supporting studies in physiology, therapeutic response, and hyperbaric oxygen treatment evaluation.
Applications
The animal hyperbaric experimental chamber simulates a high-pressure, high-oxygen environment, making it ideal for studying the therapeutic effects of hyperbaric oxygen on animals. It is also used to evaluate how animals respond to pharmaceutical treatments under elevated oxygen concentrations and pressure conditions.
Specifications
| External dimensions (L×W×H) | 1450×950×1750mm |
| Internal dimensions | Ø800mm |
| Internal volume | 0.64m³ |
| Medium | Oxygen |
| Light transmission diameter | 800mm |
| Working pressure | 0.5MPa |
| Design pressure | 0.55MPa |
| Air pressure | 0.8MPa |
| Outward opening door | 1pc |
| Net weight | 500kg |
Features
- Every chamber follows a strict manufacturing process from design through final testing. Equipped with an emergency shut-off system and automatic pressure release functions to ensure safe operation under all conditions.
- The chamber's carbon steel structure ensures long-term durability and structural stability during extended use. It includes lockable caster wheels for easy mobility and positioning within lab facilities.
- Features a medical-grade, low-noise pressurization pump that maintains stable internal pressure. The chamber’s pipeline system uses explosion-proof tubing for added safety and high-pressure resistance. A multi-stage air filtration system ensures clean air by removing hydrocarbons, moisture, oil vapors, and other particulates, greatly reducing fire hazards. Oxygen concentration is automatically regulated and sustained for accurate and consistent experimental conditions.
Main Components

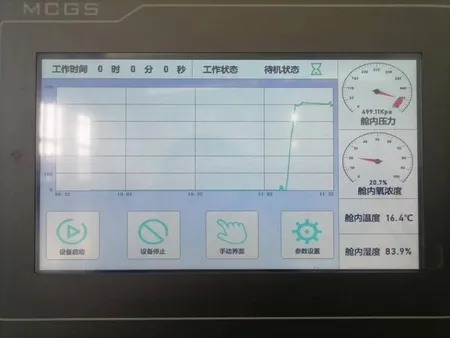

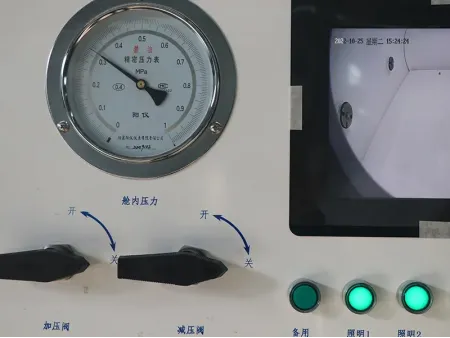

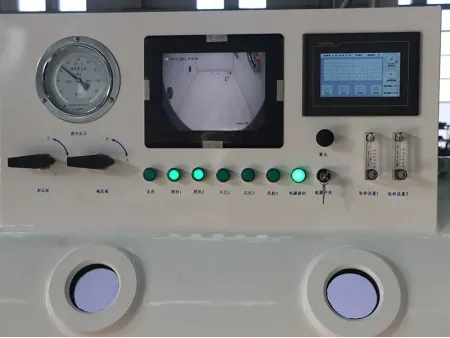

Automated Control System
The chamber is equipped with an automated control system that allows precise monitoring and regulation of key environmental parameters, including internal temperature, humidity, pressure, and oxygen concentration, ensuring stable and repeatable experimental conditions.

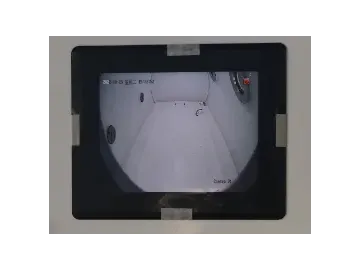

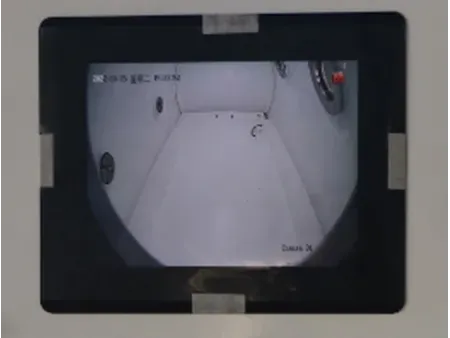

Video Surveillance System
A built-in video surveillance system provides real-time monitoring of animal behavior and status inside the chamber, supporting safe and continuous observation during testing.

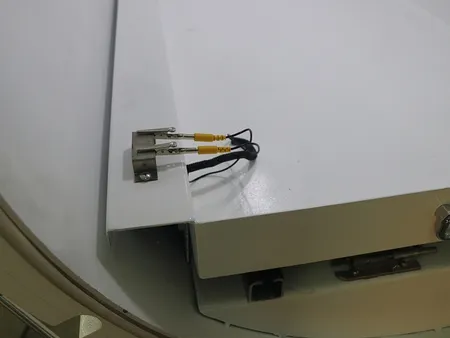

Electrostatic Discharge Control

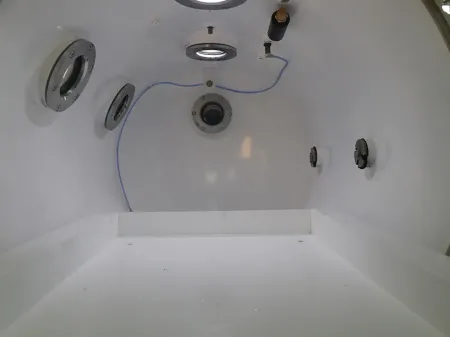

The tray is fitted with electrostatic discharge wiring, which effectively eliminates static buildup, enhancing safety for both equipment and animals.
Optional Features and Customization Options
Huaxin offers flexible customization to meet specific research needs. Pressure range, chamber dimensions, and exterior design can all be tailored according to user requirements. Additional functional upgrades are also available upon request.
