Hyperboloid Contacts
Request a Quote
General Information
- High-reliability socket components utilized in electrical connectors and inserts

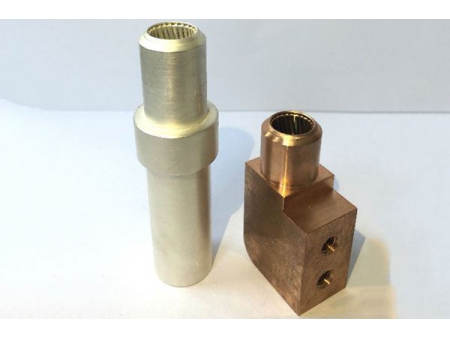

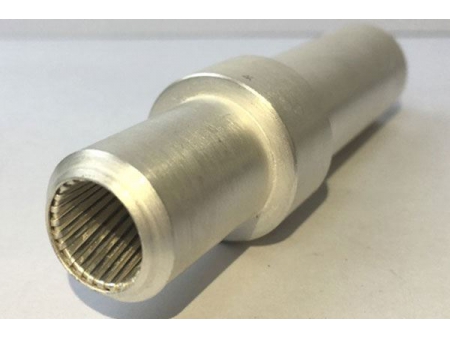

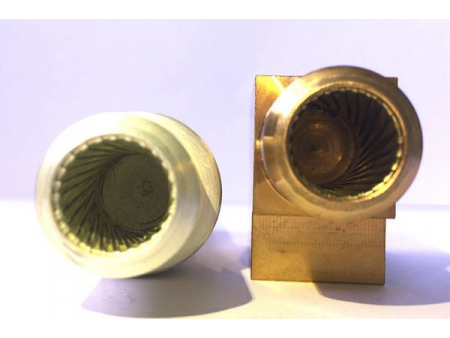

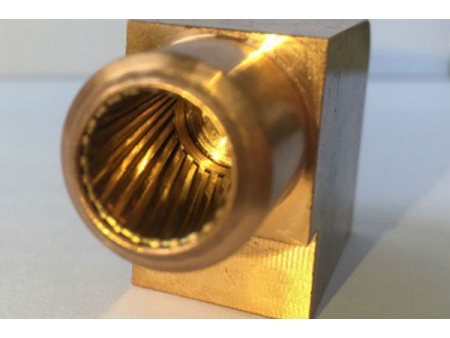

- Composed of multiple elastic gold-plated or silver-plated metal wires arranged in a single-leaved, rotating double-hyperboloid configuration, forming an angle with the inner sleeve's direct axis
- When the pin is inserted into the spring hole, the wires undergo elastic deformation in both the radial and axial directions, establishing simultaneous contact with multiple independent wires within the spring hole, creating separate electrical current paths. Even if individual wires within the hole break, the spring hole continues to maintain an effective current path.
- Boasts low and stable contact resistance, minimal insertion and extraction forces, low contact wear, and extended operational lifespan
- Exhibits exceptional contact reliability even in highly demanding environments with strong vibrations and shocks (transient interruption time < 1μs)
- Widely used in critical equipment connectors, including aerospace, defense, medical devices, automotive electronic testing, railway locomotives, electronic communications, smart devices, petroleum, chemical, and exploration industries.
- Our top-notch quality and competitive pricing have earned us the trust and loyalty of numerous customers. We are also equipped to accommodate customer-specific production based on samples or drawings.
