Metal random packing is made using carbon steel, stainless steel and other metals as raw material. Metal random tower packing offered by Hualian is characterized by thin thickness, thermal resistance, high porosity, large flux, small resistance and high separation efficiency.
Metal random packing is an ideal choice for the vacuum distillation of materials which are thermal sensitive and easy to decompose, polymerize and carbonize. A wide application of metal random packing is found in industries as petrochemical engineering, chemical fertilizer and environmental protection.

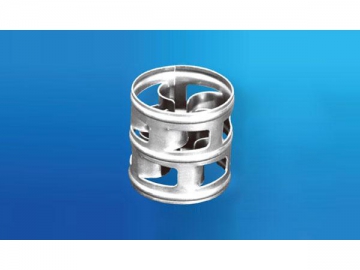

Technical Parameters of Pall Ring| Spec. | Size | Bulk density, kg/m2 | Bulk number, pcs/m3 | Specific surface area, m2/m3 | Porosity, % |
| 10 | φ 10 × H 10 × 0.3 | 571 | 768000 | 482 | 92.7 |
| 16 | φ 16 × H 16 × 0.3 | 408 | 214000 | 362 | 94.9 |
| 25 | φ 25 × H 25 × 0.5 (0.4) | 403 (322) | 51940 | 219 | 95 |
| 38 | φ 38 × H 38 × 0.6 (0.4) | 326 (217) | 15180 | 146 | 95.9 |
| 50 | φ 50 × H50 × 0.8 (0.5) | 322 (201) | 6500 | 109 | 96 |
| 76 | φ 76 × H76 × 1.0 (0.6) | 262 (157) | 1830 | 71 | 96.1 |
| 89 | φ 89 × H89 × 1.2 (0.7) | 283 (165) | 1200 | 65 | 98 |
| Diameter, mm | Bulk number, pcs/m3 | Bulk Density (kg/m3) | Porosity, % | Dry packing factor, m-1 |
| 76 | 1100 | 208 | 97.7 | 49 |
| 50 | 3670 | 224 | 97.4 | 59 |
| 38 | 9390 | 280 | 97 | 85 |
| 25 | 29900 | 312 | 96.5 | 141 |
| Spec. | Diameter, mm | Bulk Density (kg/m3) | Bulk number, pcs/m3 | Specific surface area, m2/m3 | Porosity, % |
| 10 | φ 10 × H10 × 0.3 | 571 | 768000 | 500 | 75 |
| 12.7 | φ 12.7 × H12.7 × 0.3 | 490 | 410000 | 400 | 80 |
| 16 | φ 16 × H16 × 0.3 | 408 | 214000 | 350 | 86 |
| 25 | φ 25 × H25 × 0.5 (0.4） | 403 (322) | 51940 | 220 | 88 |
| 38 | φ 38 × H38 × 0.6 (0.4) | 326 (217) | 15180 | 150 | 90 |
| 50 | φ 50 × H50 × 0.8 (0.5) | 322 (201) | 6500 | 110 | 82 |
| 76 | φ 76 × H76 × 1.0 (0.6) | 262 (157) | 1830 | 68 | 95 |
| 89 | φ 89 × H89 × 1.2 (0.7) | 283 (165) | 1200 | 58 | 97 |
Notes:
1. The thickness can be designed upon request.
2. Above parameters are only for reference.
| No. | Bulk number, pcs/m3 | Bulk Density (kg/m3) | Specific surface area, m2/m3 | Porosity, % |
| NO.0.7 | 167400 | 176 | 266 | 97.7 |
| NO.1.0 | 67100 | 178 | 168 | 97.7 |
| NO.1.5 | 26800 | 181 | 124 | 97.8 |
| NO.2.0 | 13600 | 173 | 96 | 97.8 |
| NO.2.5 | 8800 | 83 | 83 | 97.9 |
| NO.3.0 | 4200 | 66 | 66 | 98.1 |
Notes:
1. The thickness can be designed upon request.
2. Above parameters are only for reference.
| Model | Bulk number, pcs/m3 | Specific surface area, m2/m3 | Porosity, % | Dry packing factor, m-1 |
| #15 | 347500 | 291.3 | 95.6 | 51 |
| #25 | 135000 | 225.8 | 96.6 | 41 |
| #40 | 50000 | 150.8 | 97.7 | 28 |
| #50 | 15000 | 100 | 98 | 18 |
| #70 | 4625 | 60 | 98.5 | 12 |
| Model | OD× height× thickness, mm | Bulk number, pcs/m3 | Bulk Density (kg/m3) | Specific surface area, m2/m3 | Porosity, % | Dry packing factor, m-1 |
| Dg16 | 15 × 9 × 0.3 | 347500 | 240 | 291.3 | 95.6 | 253 |
| Dg25 | 25 × 15 × 0.3 | 57720 | 161 | 171 | 97.6 | 184 |
| Dg38 | 38 × 16.5 × 0.4 | 38160 | 155 | 123 | 97.7 | 132 |
| Dg50 | 50 × 29 × 0.5 | 11310 | 129 | 79 | 98.2 | 83 |
| Dg76 | 70 × 35.5 × 0.6 | 4250 | 112 | 55 | 98.5 | 58 |
| Spec. | Size, mm (OD × ID) | Bulk density, kg/m3 | Bulk number, pcs/m3 | Specific surface area, m2/m3 | Porosity, % | Dry packing factor, m-1 |
| 0P | φ 17 ×φ 15 × H6 × 0.3 | 472 | 530000 | 427 | 94 | 55 |
| 1P | φ 25 ×φ 22 × H8 × 0.3 | 270 | 150000 | 230 | 96 | 40 |
| 1.5P | φ 34 ×φ 29 × H11 × 0.3 | 201 | 60910 | 198 | 97 | 29 |
| 2P | φ 43 ×φ 38 × H14 × 0.4 | 230 | 33170 | 164 | 97 | 22 |
| 2.5P | φ 51 ×φ 44 × H17 × 0.4 | 186 | 17900 | 127 | 97 | 17 |
| 3P | φ 66 ×φ 57 × H21 × 0.4 | 139 | 8800 | 105 | 98 | 14 |
| 4P | φ 86 ×φ 76 × H29 × 0.4 | 143 | 5000 | 90 | 98 | 10 |
| 5P | φ 131 ×φ 118 × H41 × 0.6 | 136 | 1480 | 65 | 98 | 7 |
| Model | Diameter× height× thickness, mm | Bulk number, pcs/m3 | Bulk Density (kg/m3) | Specific surface area, m2/m3 | Porosity, % | Dry packing factor, m-1 |
| DN76 | 76 × 38 × 1.2 | 3540 | 385 | 72 | 0.961 | 81 |
| DN50 | 50 × 25 × 0.8 | 12340 | 385 | 109 | 0.961 | 123 |
| DN38 | 38 × 19 × 0.6 | 30040 | 433 | 153 | 0.959 | 173 |
| DN25 | 25 × 12.5 × 0.5 | 98120 | 459 | 221 | 0.951 | 257 |
Notes:
1. The density is of carbon steel and stainless steel.
2. Thickness: Copper: 1.14 mm, aluminum: 0.34 mm, monel: 1.14 mm. The thickness can be customized.
3. Above parameters are only for reference.
| Diameter, mm | Size (mm) | Bulk number, pcs/m3 | Specific surface area, m2/m3 | Porosity, % |
| 76 | 63 × 63 | 3000 | 72 | 0.98 |
| 50 | 50 × 50 | 7000 | 90 | 0.98 |
| 38 | 38 × 38 | 14500 | 110 | 0.98 |
| 25 | 25 × 25 | 33500 | 205 | 0.975 |
| Model | Size, mm | Specific surface area, m2/m3 | Porosity, % | Bulk Density (kg/m3) | Bulk number, pcs/m3 | Dry packing factor |
| φ 16 | 16 × 0.4 | 313 | 0.97 | 354 | 211250 | 340 |
| φ 25 | 25 × 0.6 | 185 | 0.95 | 216 | 75000 | 312 |
| φ 38 | 38 × 0.8 | 116 | 0.96 | 131 | 19500 | 296 |
| φ 50 | 50 × 0.8 | 86 | 0.96 | 97 | 9772 | 268 |
| φ 76 | 76 × 0.8 | 81 | 0.95 | 94.5 | 3980 | 247 |
| Material | Type | Size (mm) | Bulk number, pcs/m3 | Specific surface area, m2/m3 | Porosity, % | Bulk Density (kg/m3) | Note |
| Metal | 16 | 16 × 5.5 × 0.6 | 378000 | 348 | 0.923 | 492 | Carbon steel, stainless steel, copper, aluminum, monel alloy, nickel and titanium are available. The material can also be chosen upon request. |
| 25 | 25 × 9.0 × 0.6 | 155000 | 228 | 0.936 | 516 | ||
| 38 | 38 × 12.7 × 0.8 | 48000 | 150 | 0.95 | 400 | ||
| 50 | 50 × 17.0 × 0.8 | 21500 | 120 | 0.965 | 360 | ||
| Plastic | 50 | 50 × 17 × 1.5 | 21500 | 120 | 0.965 | 81.7 | PP, reinforced PP, PVC, COVC |
| 75 | 75 × 25 × 2.5 | 7000 | 89 | 0.975 | 70 |
| Material | Type | Size (mm) | Bulk number, pcs/m3 | Specific surface area, m2/m3 | Porosity, % | Bulk Density (kg/m3) | Note |
| Metal | 16 | 16 × 5.5 × 0.3 | 406000 | 312 | 95.7 | 339 | Carbon steel, stainless steel, copper, aluminum, monel alloy, nickel and titanium are available. The material can also be chosen upon request. |
| 25 | 25 × 9.0 × 0.4 | 166000 | 256 | 95.4 | 351 | ||
| 38 | 38 × 12.7 × 0.6 | 52000 | 170 | 95.2 | 344 | ||
| 50 | 50 × 17.0 × 0.8 | 23000 | 125 | 95.6 | 389 |
| Type | Dimensions (mm) | Bulk number, pcs/m3 | Specific surface area, m2/m3 | Void volume (m3/m3) | Bulk density (kg/m3) | Note |
| 16 | 16 ×5.5 ×0.3 | 378000 | 348 | 0.934 | 246 | Manufacture can be customized upon request |
| 25 | 25 ×9.0 ×0.4 | 155000 | 228 | 0.955 | 344 | |
| 38 | 38 ×12.7 ×0.6 | 48000 | 150 | 0.963 | 342 | |
| 50 | 50 ×17.0 ×0.8 | 21500 | 120 | 0.972 | 315 | |
| 75 | 75 ×25 ×0.9 | 5800 | 70 | 0.985 | 243 |
