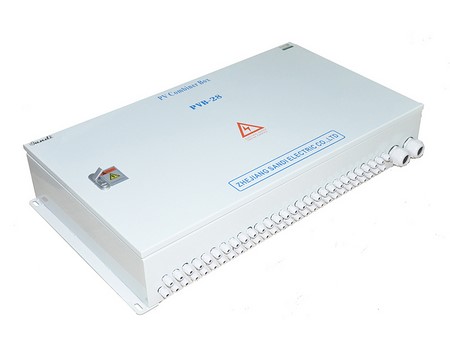

26-String PV Combiner Box
Request a Quote
1000VDC solar combiner box 26 inputs /1 output

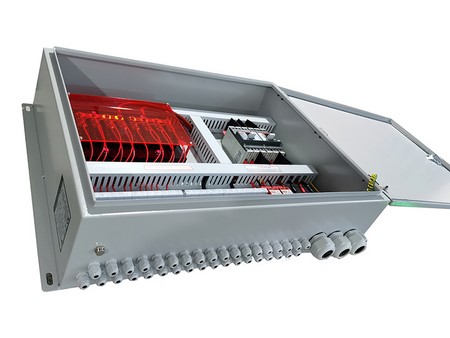

26-string PV combiner box can consolidate 26 circuits in the PV system. In addition to its function of consolidating PV currents, our PV combiner box also features a series of comprehensive protection functions, including overcurrent protection, overvoltage protection, and lightning protection.
Applications
Solar PV power generation system
Features
- 26-string PV combiner box can accommodate up to 28 strings of photovoltaic panels, with a maximum rated current of 15A for a single input array.
- Wide DC voltage input, with the highest input voltage of the photovoltaic array reaching 1000VDC.
- Meets indoor and outdoor installation requirements, with an IP65 protection level.
- PG cable connector input allows for convenient and safe wiring.
Specifications
Model | PVB-26/1 |
PV Array Input | |
Max. PV array voltage | 1000VDC |
Number of PV input string | 26 string |
Rated current for each string | 15A |
Max. output current | 390A |
Overcurrent protection for each string | yes |
Positive and negative cable size | 4mm2 |
Output string | 1 string |
Standard Accessories | |
DC output circuit breaker | 400A/3P |
PV lightning protection module | 40KA/1000V/2P |
Reverse polarity protection | Anti-reverse protection module |
Working Environments | |
Degree of protection | IP65 |
Altitude | ≤3000m |
Working temperature | -15~ 55℃ |
Storage temperature | -25~ 85℃ |
Box material | Cold-rolled steel sheet with powder coated |
