Closed Circuit Axial Piston Pump, PV Series

Request a Quote

View All: http://hydraulic-component.com/1-1-closed-circuit-axial-piston-pump-pv-series.html

PV Series

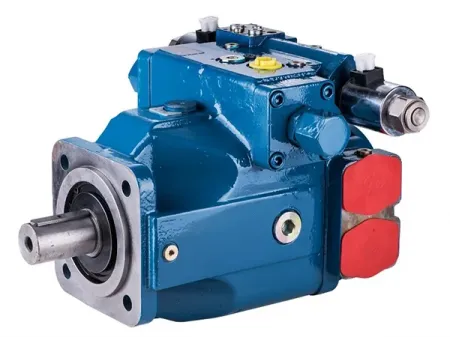

Closed Circuit Axial Piston Pump

Variable displacement hydraulic pump for closed loop operation

If you are looking for robust, high-performance closed circuit axial piston pumps, our PV series might be just what you need. Inspired by the trusted Sauer Sundstrand PV20, these pumps deliver powerful performance and durability, meeting exact standards in connection dimensions and performance. You can count on an impressive rated pressure of up to 42 MPa for unmatched reliability and quality in every application.

Key Parameters

Displacement (ml/r): 33.4, 69.8, 89, 110

Rated pressure (Mpa): 35

Max. pressure (Mpa): 42

With options for manual (MA), hydraulic (HS), and electric (EP) control, our PV series pumps give you precise control over direction, flow, and power output. They’re ideal for tough environments and are the top choice for professionals across various industries, powering everything from rollers and pavers to soil stabilizers, concrete mixers, and even pharmaceutical equipment.

Typical Applications

Construction Machinery: Rollers, pavers, and soil stabilizers,
Concrete Equipment: Self-loading concrete mixers
Pharmaceutical Machinery: Where clean and efficient hydraulic systems are required for specialized operations.

Features

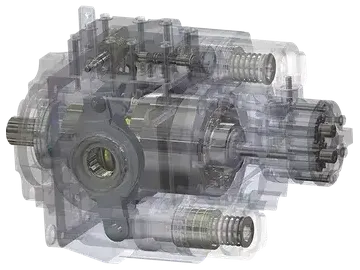

Variable Swash Plate Design: Designed as a swash plate variable pump, primarily for closed-circuit drive systems, with output flow and direction changing according to the swash plate angle.
Versatile Control Options: Control options include manual servo, electric proportional servo, and hydraulic servo, with modular valve replacement for flexibility.
Easy Installation: The pump's installation interface meets international standards, making it easy to install and operate.
Full Compatibility: Fully compatible with SAUER SUNDSTRAND PV20 series products for direct interchangeability.
High-Pressure Capacity: Rated pressure reaches up to 42 MPa, meeting high-pressure application needs.
Customized Solutions: Customized solutions are available based on your specific requirements.

Want to learn more? Let’s talk about how our PV series can fit into your projects. today to find the right solution for you.

Technical Data

Model
Displacement	Displacement range		20-33.3	22-69.8	23-89	110-110.8
Displacement	Max. displacement	ml/r	33.3	69.8	89	110.8
Rotation Speed	Max. continuous working speed (full load)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Min. continuous working speed	r/min	500
Pressure	Rated pressure	Mpa	35
	Max. pressure (instantaneous)	Mpa	42
	Continuous working pressure (△P)	Mpa	30
	Max. permissible housing pressure (absolute)	Mpa	Constant 0.25 Peak value 0.5
Torque	Continuous output torque (under continuous working pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Max. output torque	Nm	227	480	606	749
Power	Continuous power	kW	41	98	128	137
Power	Max. power	kW	57	105	138	159
Temperature	Permissible housing temperature	℃	80
Temperature	Max. working temperature of oil tank	℃	70
Angle	Max. swash plate angle	°	±18°
Weight	Hydraulic pump weight (without hydraulic oil)	kg	45	63	79	79

Download Technical Drawings (PDF)

Closed Circuit Axial Piston Pump PV-20
887KB
Closed Circuit Axial Piston Pump PV-22
1.03M
Closed Circuit Axial Piston Pump PV-23
1.29M
Closed Circuit Axial Piston Pump PV-110
2.63M
