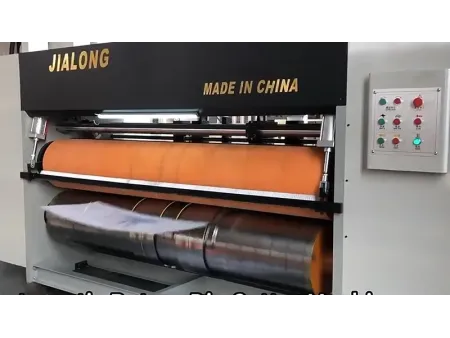

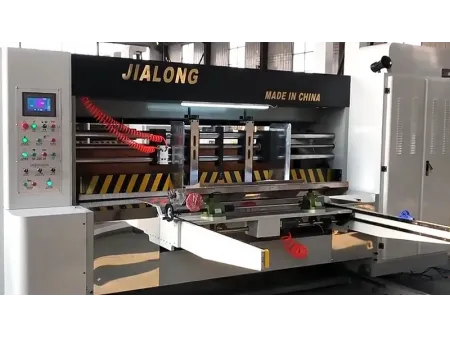

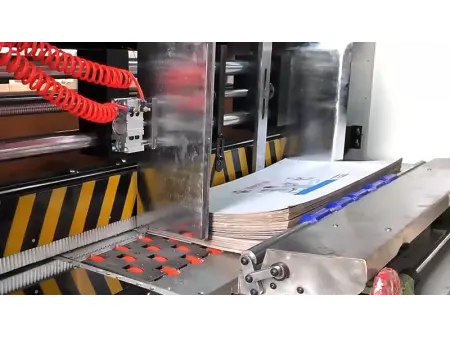

Automatic Rotary Die Cutting Machine
Request a Quote
Rotary die cutter for shaping cardboards,corrugated boards, plastic and leather products
Widely used in industries such as printing, packaging, and shoemaking, the automatic rotary die cutting machine is a post printing machine designed for the high-precision cutting of materials like paper, plastic films, rubber, and leather. Its efficiency, precision, and ease of operation make it an indispensable asset for various production processes, offering flexibility and consistent quality in shaping a wide range of products.
Specifications
| Model | |||
| Max. speed (sheets/minute) | 120 | 120 | 120 |
| Effective die cutting size (L×W) (mm) | 1200×2150 | 1200×2350 | 1200×2550 |
| Max. cardboard size (L×W) (mm) | 1250×2200 | 1250×2400 | 1250×2600 |
| Min. cardboard size (L×W) (mm) | 350×650 | 350×650 | 350×650 |
| Cardboard thickness (mm) | 3-8 | 3-8 | 3-8 |
| Power (kW) | 12 | 12 | 12 |
| Dimensions (mm) | 3700×2400×1300 | 3900×2400×1300 | 4100×2400×1300 |
| Machine weight (kg) | 5000 | 5500 | 6000 |
