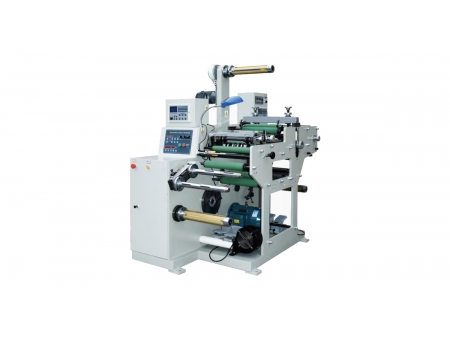

HC-320B Rotary Die Cutting Machine
Our HC-320B is a label rotary die cutting machine combining slitting and rewinding functions, enabling the labels to be die-cut, slit and rewind in one machine. This label converting equipment is designed with automatic counting of labels and length, web guiding and more functions, it is typically suitable for die cutting and slitting of plain self-adhesive labels.
This label rotary die cutter can be offered with dual rotary die cutting station to accomplish front or back cutting through one process, significantly enhancing production efficiency and lowering manufacturing cost.
Technical Data
| Model | HC-320B | HC-420B |
| Slitting speed | 120m/min | 120m/min |
| Max. web width | 320mm | 420mm |
| Max unwind diameter | 550mm | 550mm |
| Max rewind diameter | 480mm /220mm (with turret) | 480mm /220mm (with turret) |
| Slitting accuracy | ±0.10mm | ±0.10mm |
| Main motor power | 1.5kw | 1.5kw |
| Dimension | 1100*900*1300mm | 1100*1000*1300mm |
| Machine weight | 500kg | 600kg |
