Semi-automatic ribbon inserting machine integrates PLC programming technology, a user-friendly touch screen interface, parameter customization, and fault detection with automatic shutdown capability.

It adopts a combination of pneumatic and servo control systems, ensuring precise and efficient operation. Moreover, all control components are sourced from internationally recognized high-end brands, guaranteeing a low failure rate and exceptional stability.


Application

This ribbon inserting machine is suitable for various types of gift boxes, drawer boxes, folding boxes, and other box types that require ribbon insertion, greatly reducing manual work and improving production efficiency. The machine features small size, easy operation, high speed, and reduced labor requirements.

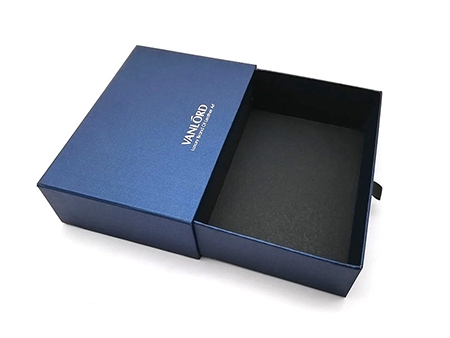

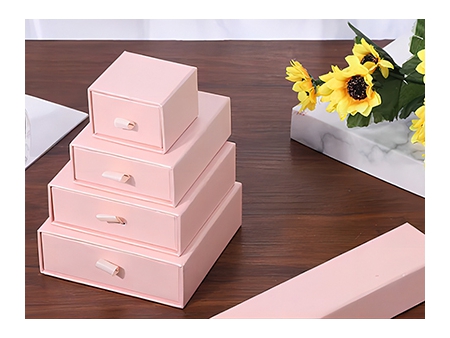

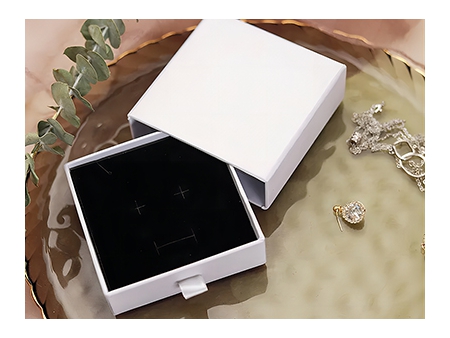

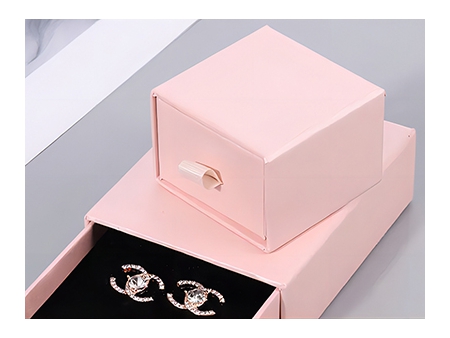

Sample Boxes
Parameters
Max. Box Dimension 400*450*120mm Min. Box Dimension 40*40*10mm
Carton Thickness 1-3.5mm Manufacturing Speed 20-25pcs/min
Ribbon Width 5-20mm Ribbon Pull Tab Length 10-60mm
Overall Ribbon Length 10-30mm Power 3.8kW
Voltage 220V Air Pressure 0.6Mpa
Weight 310kg Machine Size 1000mm*905mm*1615mm
