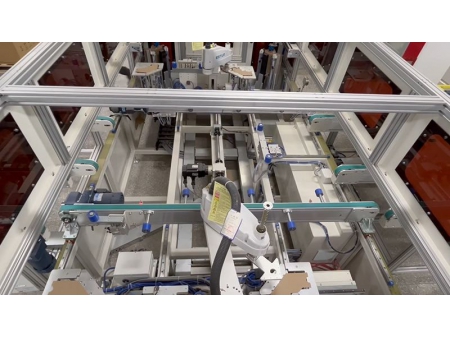

Automatic Corner Protector Inserting Machine
Request a Quote
Used for automatic inserting of kraft/corrugated cardboard corner protectors for solar panel
Technical Parameters
| Item | Parameters |
| Panel size | (1,680-2,650)*(985-1,500)mm |
| Cycle time | 20s |
| Frame height | 25-50mm |
| Corner protection material | Kraft paper/corrugated paper |
| Corner protection thickness | 0.1-2mm |
| Stored corner protection boxes | Height: 500mm |
| Loading time | ≤3min |
| Panel positioning accuracy | ±0.5mm |
| Overall dimensions (L*W*H) | 4,000*2,000*1,700mm |
| Voltage | 380V 10A |
| Power | 3kW |
| Air pressure | 0.8MPa |
Features
- Panel type switching is simple and easy to operate;
- Featuring wide adoption and can be used for inserting paper, kraft paper and corrugated cardboard corner protectors for solar panels without frames;
- Equipped with a visual inspection system to monitor the quality of the corner protection inserting.
