Four-Dimensional Mirror Mount
Request a Quote

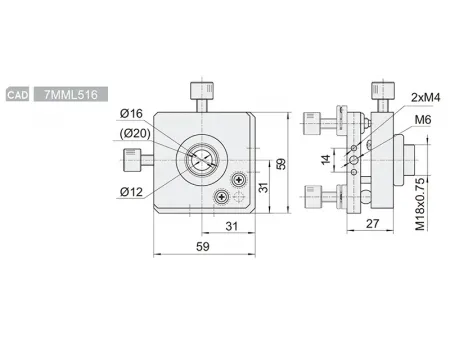

7MML516
Features
- Supports two-dimensional translation and two-dimensional inclination adjustment for precise positioning.
- Equipped with an M6 x 0.25 fine-thread adjustment featuring a special copper nut that locks axially, preventing loosening due to vibration.
- Includes a Belleville spring for reset, allowing adjustable force settings from zero to full rigidity.
- Designed with a pressing ring for secure lens clamping.
- Allows flexible clamping diameter adjustments using 7MML516-1F or 7MML516-2F adapters.
Specifications
| Model | |
| Translation travel (mm) | ±2 |
| Inclination range (°) | ±3 |
| Clamping diameter (mm) | 16 |
| Weight (g) | 214g |
Model Options
| Model | Clamping diameter (mm) |
| 20 | |
| 25.4 |
