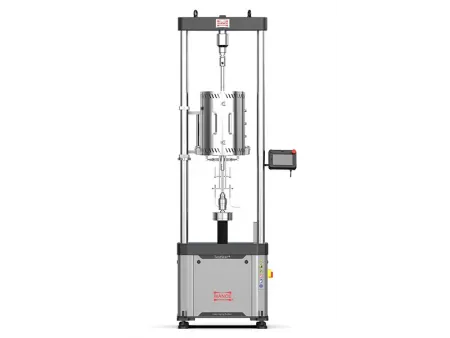

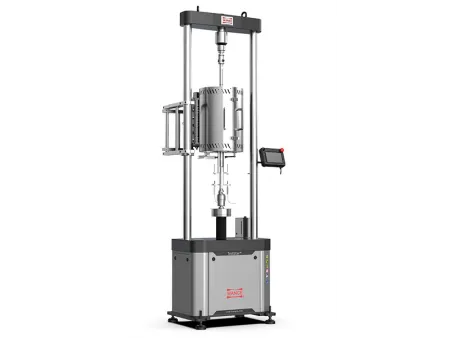

Electromechanical Creep & Stress Rupture Testing Machine
Request a Quote
TSC-B Series (30kN-100kN)
The electromechanical creep and stress rupture testing machine is designed for long-duration high-temperature testing of metallic materials. It is suitable for creep, stress-rupture, stress-relaxation, and cyclic loading tests on specimens made from superalloys, titanium alloys, ferrous and non-ferrous metals in both bar and plate form.
Standards
ASTM E139, ASTM E292, ASTM E1012
Features
- Servo-motor and ball-screw loading system.
- Motorized tensile head with automatic elongation compensation maintains loading-train alignment and ensures load accuracy within ±0.5% throughout the test.
- Power-loss recovery for uninterrupted long-term testing.
Specifications
| Model | | | | |
| Max force, kN | 30 | 50 | 80 | 100 |
| Min force, N | 300 | 500 | 800 | 1000 |
| Force accuracy | ±0.5% of reading | |||
| Lower pull rod speed, mm/min | 0.01-110 | |||
| Lower pull rod travel, mm | 0-200 | |||
| Axiality | ≤10% | |||
| Test width (W), mm | 600 | |||
| Grip distance (H), mm | 1100 (with split type furnace) 1250 (with closed type furnace with auto lifting) | |||
| Power requirements | 7kW (380V±10% AC, 50Hz, 3-phase) | |||
| Dimension (AxBxC), mm | 710x520x2400 (with split type furnace) 710x520x2550 (with closed type furnace with auto lifting) | |||
| Weight, kg | 600 | |||
