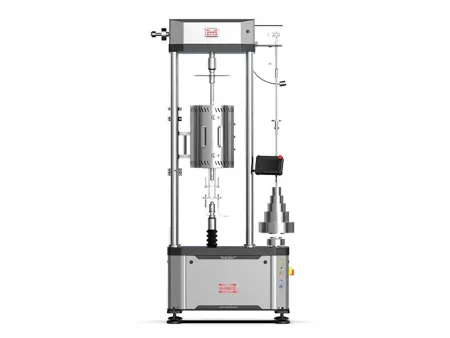

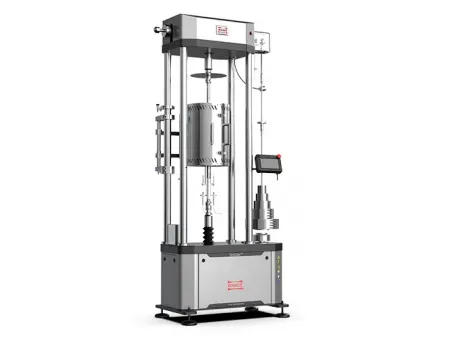

Lever Arm Creep & Stress Rupture Testing Machine
Request a Quote
TSC-A Series (30kN-100kN)
The electromechanical creep and stress rupture testing machine is designed for long-duration high-temperature testing of metallic materials. It is suitable for creep and stress-rupture on specimens made from superalloys, titanium alloys, ferrous and non-ferrous metals in both bar and plate form.
Features
- The load is applied through a lever-arm mechanism using calibrated weights.
- Motorized tensile head with automatic elongation compensation maintains loading-train alignment and ensures load accuracy within ±0.5% throughout the test.
- Power-loss recovery for uninterrupted long-term testing.
Specifications
| Model | | | | |
| Max. force, kN | 30 | 50 | 80 | 100 |
| Min. force, N | 600 | 1000 | 1600 | 2000 |
| Force accuracy | ±0.5% of reading | |||
| Lower pull rod speed, mm/min | 0.01-90 | |||
| Lower pull rod travel, mm | 0-200 | |||
| Automatic level adjustment range, mm | 0.1 | |||
| Lever arm ratio | 1:50 | |||
| Axiality | ≤10% | |||
| Test width (W), mm | 600 | |||
| Grip distance (H), mm | 1050 | 1000 | ||
| Grip distance (H), mm With closed type furnace and auto lifting | 1270 | 1250 | ||
| Timing accuracy | ±0.1% | |||
| Electric supply | 7kW (380V±10%, 50Hz, 3-phase) | |||
| Length x Width x Height (AxBxC), mm | 970x540x2400 | 1100x680x2550 | ||
| Length x Width x Height (AxBxC), mm With closed type furnace and auto lifting | 970x540x2620 | 1100x680x2800 | ||
| Weight (with dead weights), kg | 1000 | 1400 | ||
