Medical Gas Outlet Box
Request a Quote
- Three gases outlet box
- Six gases outlet box
Description

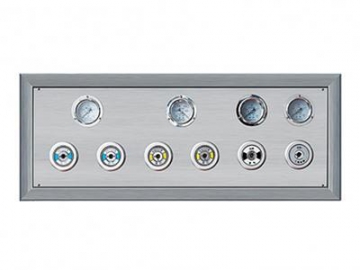

We offer medical gas outlet boxes that hold 3 outlets or 6 outlets, so that users can quickly connect to various gas types in an operation room in order to facilitate medical care.
- The main part of the gas outlet box is made using H59-1 brass, and is known for its durability and long service life.
- The box shell is made using a corrosion resistant 304 stainless steel.
- Oxygen working pressure: 0.35Mpa
- Attracting working pressure: -0.075Mpa
- Air working pressure: 0.8Mpa
- The patients inhale oxygen during an operation, and any body waste is collected using the matched medical suction unit after the operation. Various gas plugs are inserted into the corresponding outlet while patients are inhaling the gas.
- Insert the plug into the outlet and listen for a click. The clock indicates the plug is locked, and the gas supply can be used.
- After use, the plug will automatically popup if users are holding the plug with one hand, and the catching terminal box with the other. The plug popping up indicates it is now unlocked.
