Medical electric linear actuators play a huge role in meeting positive healthcare solutions and are specifically designed by us to meet the stringent requirements of the medical industry. The linear actuator is made of high quality materials and advanced technology to ensure its excellent performance and long durability. It is designed to meet the safety and hygiene standards of medical devices and is suitable for a variety of medical applications such as operating beds, nursing beds, wheelchairs and dental equipment. The electric actuator has the characteristics of smooth and quiet operation, provides accurate positioning and adjustment functions, and improves the comfort and nursing efficiency of patients. Our medical linear actuator is easy to install, and features low maintenance cost, and has waterproof, dustproof and other protection functions, making it suitable for various medical environments. Its intelligent control system can realize a variety of complex movements, ensuring efficient operation and precise control of medical equipment.
- YXN011C Medical Linear Actuator
- YXN011CR Medical Linear Actuator (Manual Release Function)
- YXN012 Medical Linear Actuator
- YXN013 Medical Linear Actuator

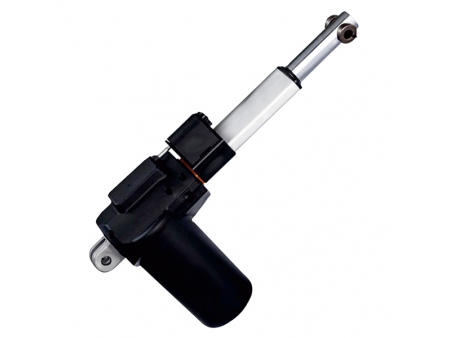

YXN011C Medical Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 8000N |
| No-load speed | 4-30 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP65 |
| Stroke switch | Built-in |
| Certification | IEC, CE, ROHS, SAA, FCC, CCCF |

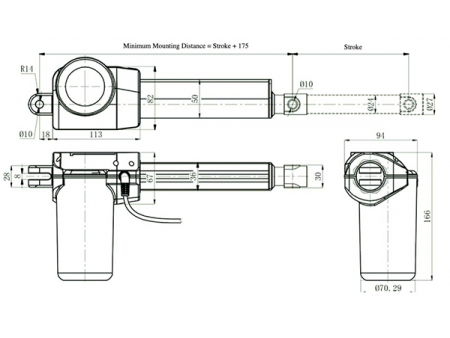

Dimensions
▴Built-in/without Hall signal
YXN011CR Medical Linear Actuator (Manual Release Function)
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 3500N |
|
| No-Load speed | 7-13.5 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP65 |
| Stroke switch | Built-in |
| Certification | IEC60601 |

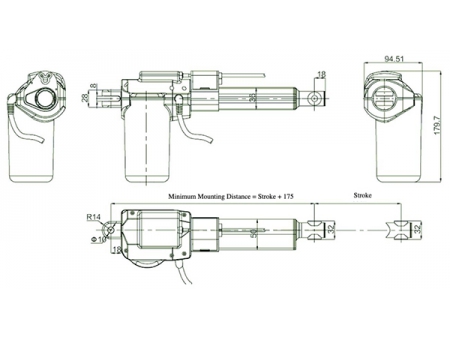

Dimensions
▴Built-in/without Hall signal

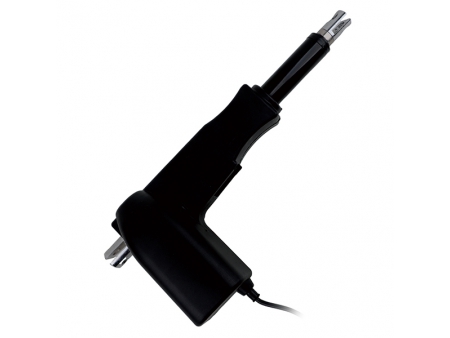

YXN012 Medical Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 6000N |
| No-load speed | 4 mm/s(6000 N), 10 mm/s (2000 N) |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP54 |
| Stroke switch | Built-in |
| Certification | CE, SAA, FCC |
Installation size
| Stroke | <100 | ≤100 |
| Minimum mounting distance | 283 | S 175 |

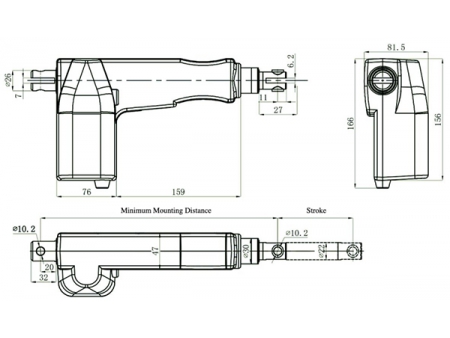

Dimensions

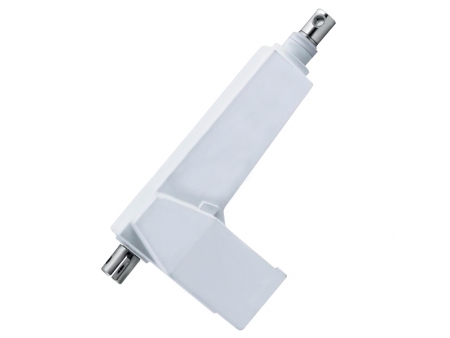

YXN013 Medical Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 8000N |
| No-load speed | 4 mm/s (8000 N), 6mm/s (6000 N) |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP54 |
| Stroke switch | Built-in |
Installation size
| Stroke | ≤130 | ≤100 |
| Minimum mounting distance | 305 | S 175 |

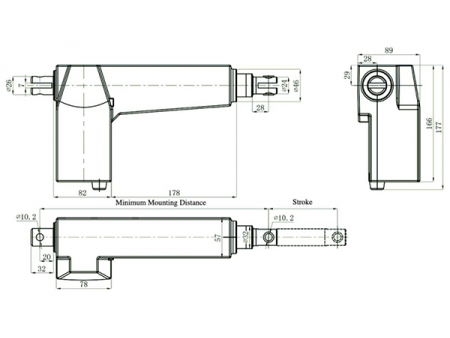

Dimensions
