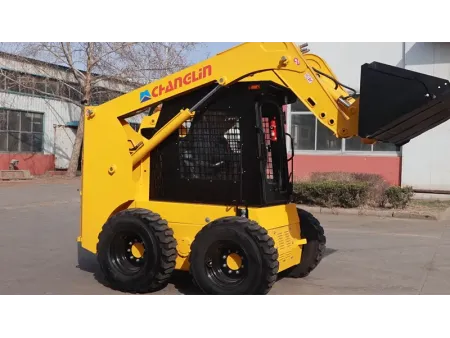

255F/265F Wheeled Skid Steer Loader
Engineered for 360° agile maneuverability in confined spaces, the wheeled skid steer loader is highly versatile across a wide range of tasks including site leveling, debris removal, short-distance material transport, feed handling, barn cleaning, landscaping, snow clearing, street sweeping, and greenbelt maintenance. It also supports indoor operations such as warehouse loading, in-plant material transfer, and equipment positioning. Its compact design and adaptability make it ideal for use on construction sites, farms, municipal maintenance zones, and warehouse or logistics environments.
- Length (with bucket on ground) 3490 mm
- Operating weight 3250 kg
- Rated bucket capacity 0.45 m³

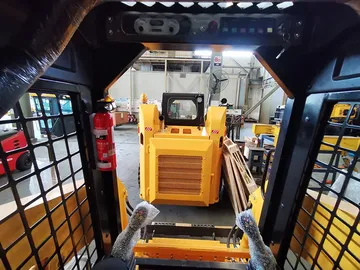

Simple and intuitive dual-joystick control
The loader is equipped with dual joysticks for both driving and loading functions, offering straightforward and reliable operation for users of varying experience levels.
All-wheel drive with skid steering
Delivers responsive control and maneuverability, particularly effective in confined areas or challenging terrain with tight obstacles and uneven surfaces.
Short wheelbase with high hydraulic power
Its compact frame improves stability and handling, while the high-performance hydraulic system provides strong power output, ideal for high-frequency, short-distance material transport operations.
Compatible with a wide range of attachments
Designed to support multiple tools including backhoe arms, vibrating ice breakers, pallet forks, mixing buckets, and augers, this model adapts to diverse tasks such as ice removal, material handling, drilling, and on-site mixing. For more details, please refer to the .
Overall Dimensions
- Model
255F 265F - Length (with bucket on ground) 3420mm3490mm
- Width (to outside of wheels) 1680mm1850mm
- Bucket width 1730mm1890mm
- Height (to the top of the cab) 2150mm2260mm
- Model
255F 265F - Wheel base 991mm991mm
- Track width 1500mm1500mm
- Min. ground clearance 200mm205mm
Performance
- Model
255F 265F - Rated load 700kg850kg
- Operating weight 2800kg3250kg
- Rated bucket capacity 0.35m³0.45m³
- Max. breakout force 22kN22kN
- Static tipping load ≥17kN>18kN
- Max. dump clearance 2430mm2450mm
- Dump reach 700mm750mm
- Dump angle at any position ≥40°≥40°
- Angle of departure 30030°
- Digging depth (with bucket bottom horizontal) 0mm0mm
- Model
255F 265F - Min. turning radius (Outside of bucket) 2190mm2230mm
- Min. turning radius (Outside of front wheel) 1168mm1204mm
- Min. turning radius (Outside of frame tail) 1630mm1706mm
- Lifting time of bucket ≤4.2sec.≤4.2sec.
- Lowering time of bucket ≤2.5sec.≤2.5sec.
- Dumping time ≤2.6sec.≤2.6sec.
- Travel speed (Forward (1 gear)) 0-12km/h0-12km/h
- Travel speed (Reverse (1 gear)) 0-12km/h0-12km/h
- Height (to the top of the cab) 2150mm2260mm
