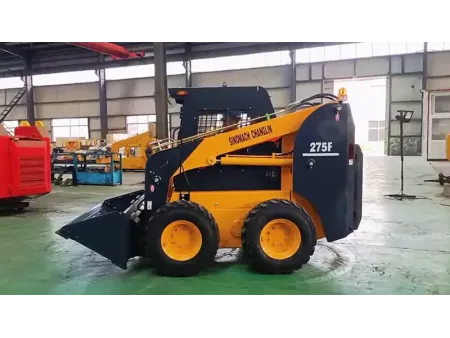

275F Wheeled Skid Steer Loader

275F  Wheeled Skid Steer Loader
275F  Wheeled Skid Steer Loader
Request a Quote

This high-horsepower wheeled skid steer loader is designed for 360° flexible turning within confined job sites. It delivers strong performance across a wide range of applications including site grading, rubble clearing, short-distance transport of building materials, feed handling, barn cleaning, land maintenance, snow removal, street sweeping, greenbelt restoration, warehouse loading, in-plant transfer, and equipment setup. Its compact size and high maneuverability make it an ideal solution for construction, agriculture, municipal maintenance, and logistics environments.

  • Length (with bucket on ground) 3490 mm
  • Operating weight 3400 kg
  • Rated bucket capacity 0.53 m³
Technical Specifications

Overall Dimensions

  • Length (with bucket on ground) 3490mm
  • Width (to outside of wheels) 1850mm
  • Bucket width 1890mm
  • Height(to the top of the cab) 2260mm
  • Wheel base 1085mm
  • Track width 1500mm

Performance

  • Rated load 1050kg
  • Operating weight 3400kg
  • Rated bucket capacity 0.53m³
  • Max. breakout force 27kN
  • Static tipping load 20kN
  • Max. dump clearance 2550mm
  • Dump reach 700mm
  • Dump angle at any position >40
  • Angle of departure 30°
  • Min. turning radius Outside of bucket
    Outside of front wheel
    Outside of frame tail
    2230mm
    1204mm
    1706mm
  • Lifting time of bucket ≤4.2sec.
  • Lowering time of bucket ≤2.5sec.
  • Dumping time ≤2.6sec.
  • Travel speed Forward (1 gear)
    Reverse (1 gear)
    0-12km/h
    0-12km/h
