Stainless Steel Cooking Utensil Production Line

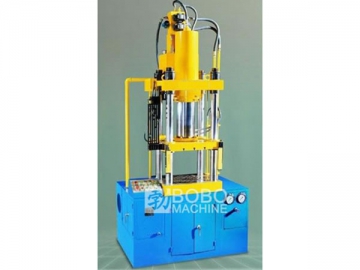

| Model | ||
| The main oil cylinder nominal force (KN) | 1500 | |
| Max. working pressure of the main oil cylinder liquid (Mpa) | 20 | |
| Master cylinder return force (KN) | 60 | |
| Nominal pressure of pressure side cylinder(KN) | 500 | |
| Max. working pressure of the pressure side cylinder liquid (Mpa) | 20 | |
| Nominal force of the rejected material cylinder (KN) | 25 | |
| Max. stroke of activities beam (mm) | 550 | |
| Max. stroke of pressure side cylinder piston (mm) | 300 | |
| Max. stroke of rejected material cylinder (mm) | 210 | |
| Distance between the piston beam and the worktable (mm) | Max: 1000 Min: 450 | |
| Activities beam lifting speed | Empty descemding (mm/s) | 130 |
| Forcing (mm/s) | 10/22 | |
| return trip (mm/s) | 250 | |
| Pressure side cylinder piston ascending velocity (mm/s) | 85 | |
| Rejected material cylinder ejector speed (mm/s) | 60 | |
| Motor power (kw) | 30 | |
| Worktable size (mm) | Left and right | 700 |
| Front and back | 800 | |
| Overall dimension (mm) | 1900*1480*3645 | |
| Weight (t) | 5.5 | |

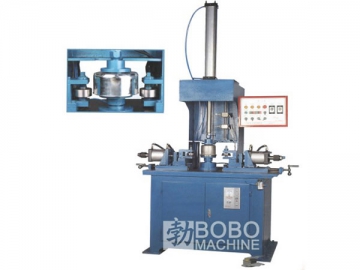

| Model | |
| Max. work piece diameter | Φ325mm |
| Max. work piece height | 300mm |
| Work piece thickness | 0.5~1.2mm |
| Work piece rotating speed | 100-950r/min (adjustable) |
| Main motor power | 4KW, 1440rpm |
| Hydraulic pump motor power | 2.2KW, 1440rpm |
| Max. Stroke for side cylinder | 50mm (10-30mm adjustable) |
| Max. Pushing force for side cylinder | 3 Ton |
| Side cylinder work pressure | 0.6-0.8MPa |
| Max. Hydraulic pressure | 5MPa |
| Overall dimension | 1900*1150*2800mm |

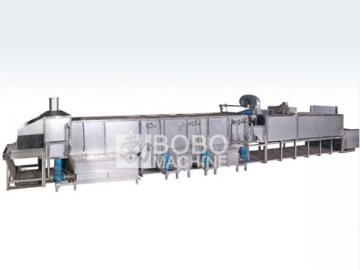

1. Dimension: 18300x17300x2400 (optional)
2. Alkali liquid tank (acid tank) temperature: ≤65° adjustable or auto constant temperature function (standard model)
3. Dryer temperature: ≤120℃ adjustable or auto constant temperature (standard model)
4. Water consumption: 1.5-2.5t/h (standard)
5. Washing liquid: Metal washing agent de-oil agent soda (mix in certain ratio)
6. Water requirement: Tap water (soft water)
7. Heating method: Electricity, gas, steam, petrol optional

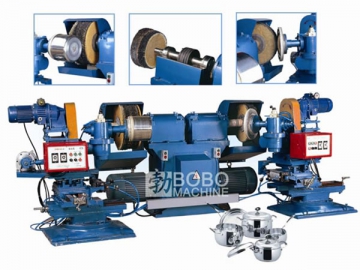

Main Technical Data
Model: EPM4140-C
Suitable work piece size: Pot body ≤400mm * 350mm (Diameter*Height)
Pot lid ≤400mm * 50mm (Diameter*Height)
Polishing wheel size: ≤430mm*330mm (Diameter * Thickness)
Main shaft rotating speed: 2160 rpm
Work piece rotating speed: 28-140rpm, adjustable
Air pressure: 0.5-0.8MPa
Work piece holding: Vacuum clamping
Motor power: Main motor 11KW * 2
Work piece rotate motor: 0.75KW * 2
Reciprocating motor: 0.37KW * 2
Machine dimension: 3575 * 1256 * 1275mm

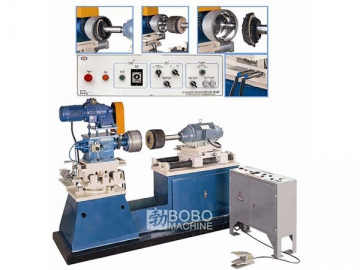

Main Technical Data
Model: MB4220-A
Work piece diameter: Up to 400mm
Work piece height: 50-300mm
Work piece rotate speed: 28-140rmp, stepless adjustment
Polishing wheel diameter: Up to 200mm
Polishing wheel rotate speed: 2900rpm
Working air pressure: 0.5-0.8MPa
Motor power for polishing wheel: 7.5KW
Motor power for work piece fixture: 0.75KW
Dimension: 2170 * 1880 * 1500 mm
Weight: About 1500KG
