Dredge Pump
Dredging Components

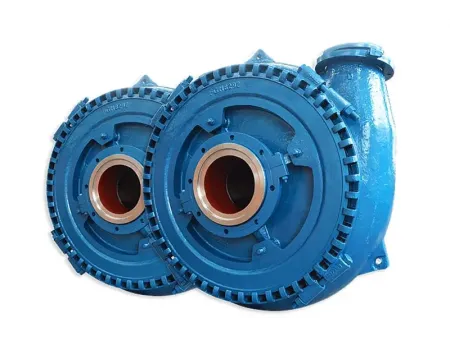

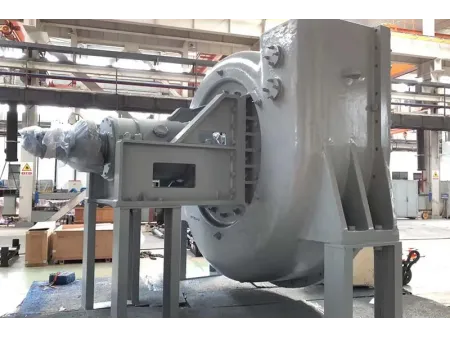

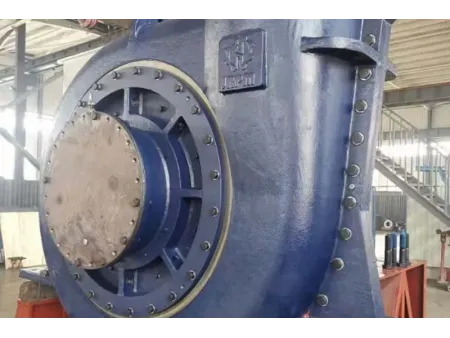

The dredge pump features a single casing, single-stage, single-suction cantilevered horizontal structure. Two typical configurations are available based on the drive system: one with a built-in bracket and one with a combined pump casing.
This pump utilizes a front dismantling structure, allowing for easy disassembly for maintenance. Specially designed assembly and disassembly tools are included for each component to facilitate the process. The impeller and shaft are connected using a standard four-head trapezoidal thread, which efficiently transmits high torque while also being easy to disassemble. Additionally, an impeller removal ring is installed at the shaft sleeve to ease the impeller disassembly and maintenance.
Explore the benefits of our dredge pumps for your dredging projects. With reliable performance and easy maintenance, our pumps ensure efficient operations in various conditions. Contact us today to learn more!
Model | Pumping capacity | Head | Speed | Efficiency | Suction diameter | Discharge diameter | Max. spherical passage |
750-1000m³/h | 40-65m | 700-850r/min | 70-72% | 250mm | 200mm | 180mm | |
1100-1300m³/h | 40-65m | 500-650r/min | 70-74% | 300mm | 250mm | 144mm | |
1800-2200m³/h | 40-65m | 400-550r/min | 74-78% | 450mm | 300mm | 241mm | |
2600-3000m³/h | 40-65m | 400-550r/min | 74-78% | 450mm | 350mm | 245mm | |
2800-3200m³/h | 20-40m | 400-550r/min | 74-78% | 450mm | 400mm | 250mm | |
3200-3850m³/h | 40-67m | 350-500r/min | 76-80% | 600mm | 450mm | 254mm | |
4500-5500m³/h | 40-65m | 350-450r/min | 78-80% | 650mm | 500mm | 250mm | |
7000m³/h | 62m | 470r/min | 80% | 700mm | 600mm | 220mm |
