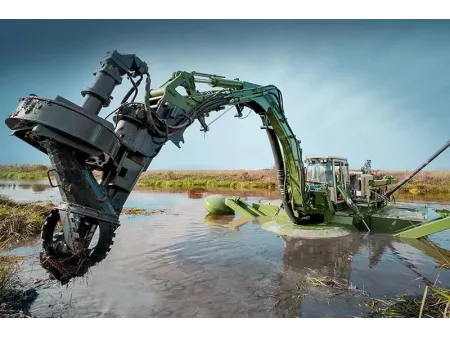

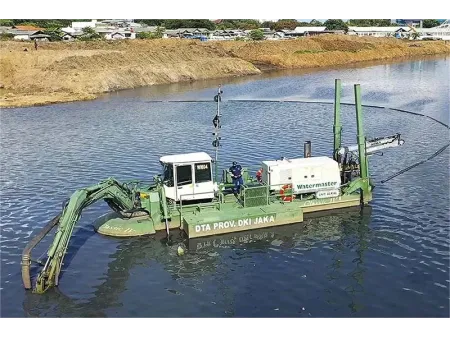

Amphibious Multipurpose Dredger
Request a Quote
Dredging Vessels
Able to perform dredging, digging, piling, raking operations with mobility in water and on land
- Dredging depth: up to 7 meters
Our Amphibious Dredger is the perfect solution for your shallow water projects. It combines multiple functions cutter suction, excavation, grab dredging, piling, and vegetation removal into one versatile dredger. Whether you’re working in coastal mudflats, lakes, inland rivers, canals, reservoirs, or industrial sedimentation ponds, this dredger can handle it all with ease.
For a reliable, multifunctional dredger that meets your project needs, contact us today to learn more about how our Amphibious Dredger can support you!
Applications
The Amphibious Multipurpose Dredger can be used for the following:
- Dredging and sediment removal in urban and rural rivers, lakes, and ponds
- Comprehensive management of small water systems
- Agricultural water conservancy projects
- Flood control and emergency rescue operations
- Sludge engineering construction
- Wetland and reed bed management
- Dock maintenance and expansion
- Water management construction in other harsh conditions
- Urban Lake Cleanup
- River Channel Cleanup
- Dock Construction
- Swamp Cleanup
- Lake Cleanup
- Agricultural Land Development
Specifications
| Dimensions (L×W×H) | 11×3.3×3.1m | 13×3.5×3.1m |
| Working capacity | 400m³/h | 900m³/h |
| Engine power | 194kW | 335kW |
| Max. operating pressure | 25MPa | 25MPa |
| Excavator | ||
| Swing angle | 180° | 180° |
| Bucket cylinder force | 80kN | 80kN |
| Dredge Pump | ||
| Outlet diameter | 200mm | 250mm |
| Dredging depth | 6m | 7m |
| Output distance | 1000m | 1000m |
| Water flow | 400m³/h | 900m³/h |
Features
- Multifunctional Operation: Combines backhoe dredging, cutter suction dredging, salvage, and piling operations in one machine
- Amphibious Capability: No need for additional equipment can "walk in and out" of the water using its built-in propulsion system for amphibious operations
- Extended Discharge Distance: Discharge distance can reach up to 1,500 meters, with the option to connect to remote booster pumps for extended reach.
- Efficient Mobility and Anchoring: No winches or cables, providing excellent mobility and anchoring capabilities for efficient work shifts.
- Stabilized Operation: Equipped with a four-point hydraulic stabilizer system to ensure smooth and stable operation throughout the dredging process.
Detailed Features
Diesel Engine
Brands: Cummins, Mitsubishi, Weichai
Multifunctional Workhead
Customer Case Studies

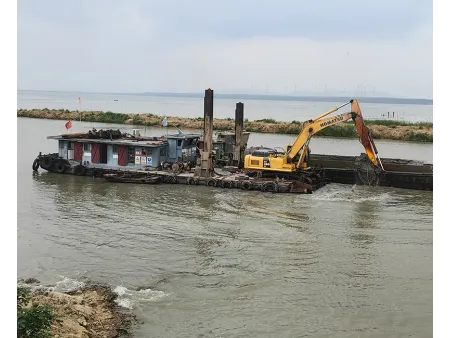

A 6-inch pump with a discharge distance of 500 meters and a handling capacity of 400 cubic meters per hour is being used for river channel dredging.
