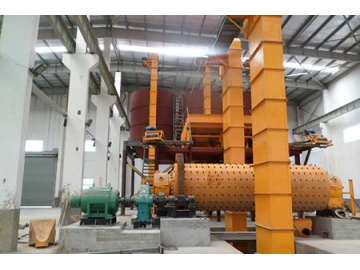

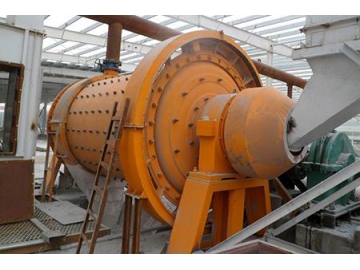

Ball Grinding Mill

Request a Quote

View All: http://mining-spare-parts.com/2-8-rod-mill-rubber-liner.html

Application
The ball grinding mill is widely used in the production of cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal beneficiation, glass, and ceramics and so on. It is a key device of grinding the materials again after they are crushed. It is mainly used to grind various kinds of ore and other grindable materials and the grinding modes can be dry ball grinding and wet ball grinding.

Applicable materials
Cement, silicate product, fertilizers, calcium carbonate, gold, copper, iron, limestone, marble, gypsum and other materials.

Parameters

Model	Rotation speed of the cylinder (r/min)	Total load capacity (t)	Feed size (mm)	Discharge size (mm)	Output (t/h)	Motor power (KW)	Total weight (t)
Ф900×1800	36	1.5	≤20	0.075-0.89	0.65-2	18.5	5.5
Ф900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	6.7
Ф1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ф1200×4500	36	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	32.4	7.5	≤25	0.074-0.4	2-5	75	16.8
Ф1500×4500	29.7	11	≤25	0.074-0.4	3-6	110	21
Ф1500×5700	27	12	≤25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	29
Ф1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	35.5
Ф1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	34.8
Ф2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
Ф2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	56.6
Ф2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	51.8
Ф2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	60
Ф2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	62
Ф2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	≤25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	69
Ф2700×4000	20.7	40	≤25	0.074-0.4	12-80	380	94
Ф2700×4500	20.7	48	≤25	0.074-0.4	12-90	480	102
Ф3200×4500	18	65	≤25	0.074-0.4	depending on production process	630	137
Ф3600×4500	17	90	≤25	0.074-0.4	depending on production process	850	158
Ф3600×6000	17	110	≤25	0.074-0.4	depending on production process	1250	175
Ф3600×8500	18	131	≤25	0.074-0.4	45.8-256	1800	252
Ф4000×5000	16.9	121	≤25	0.074-0.4	45-208	1500	203
Ф4000×6000	16.9	146	≤25	0.074-0.4	65-248	1600	218
Ф4000×6700	16.9	149	≤25	0.074-0.4	45-252	1800	238
Ф4500×6400	15.6	172	≤25	0.074-0.4	54-306	2000	280
Ф5030×6400	14.4	216	≤25	0.074-0.4	68-386	2500	320
Ф5030×8300	14.4	266	≤25	0.074-0.4	88-500	3300	403
Ф5500×8500	13.8	338	≤25	0.074-0.4	108-615	4500	525

Advantages

The ball grinding mill is designed with advanced production technology so that it will be efficient and energy -saving.
The ball grinding mill is easy to lubricate and maintain. Main bearing is lubricated by grease, clean and easy to use thus avoiding the heavy metal pollution.
The ball grinding mill is equipped with rolling bearing so that it has a long service life.
The hollow shaft has good abrasion resistance thanks to its steel casing.
