ST-TC-EM

Temperature control used for regulating the temperature of hot runner system in injection molding process

SHTC-EM series integrated temperature controllers, with touchscreen temperature boxes, are ideal for industries requiring high-precision temperature control such as automotive components, preform injection, and medical supplies. This advanced controller supports configurations ranging from 12 to 126 control groups and features touchscreen interfaces for enhanced user interaction. It facilitates centralized monitoring through connections over RS485 or Ethernet, simplifying the management of multiple units and streamlining operations. This hot runner integrated temperature controller is particularly well-suited for future one-stop control solutions, offering significant benefits to various industry sectors.


Features
  • Utilizes an imported PMA multi-loop temperature control system for high accuracy.
  • Features a 10.1-inch color capacitive user-friendly touchscreen interface that is vivid and easy to operate.
  • Supports multi-touch and allows interactive control for scaling display of temperature curves.
  • Includes monitoring and safety features such as current monitoring, output percentage display, historical alarm display and storage, and one-touch temperature setting.
  • Equipped with RS485 networking functionality for comprehensive connectivity.
Functions
  • Ensures precise temperature adjustments with FUZZY PIDD control technology.
  • Adjusts for ambient temperature variations.
  • Enhances reliability by monitoring for sensor errors and circuit break detection.
  • Features output interruption checks, short-circuit protection, deviation alarms, and 380V power input protection with alarms.
  • Outputs detailed error codes for effective troubleshooting.
Applications

This controller is ideal to enhance operational efficiency and precision in plastic injection molding setups, especially those that demand meticulous temperature control to maintain product quality and process stability.

Specifications
Model SHTC- 12EM 24EM 36EM 48EM 60EM 72EM 90EM 108EM 126EM
Display size (Inch) 10.1

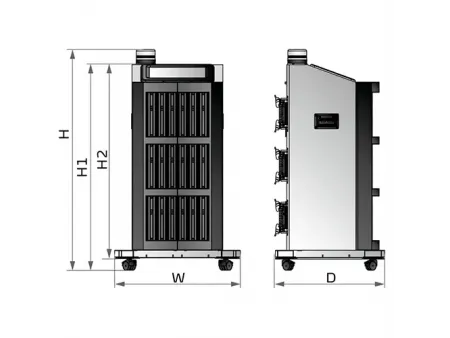

Dimensions H(mm) 465 660 855 1050 1245 1050 1245 1245 1050
W(mm) 496 496 496 496 496 622 622 742 988
D(mm) 431 431 431 431 431 431 460 460 460
H1(mm 413 608 803 998 1193 998 1193 1193 998
H2(mm) 354 549 744 939 1134 939 1134 1134 939
Weight (kg) 29 47.5 66 84.5 103 123 145 165 190
We reserve the right to change specifications without prior notice.
