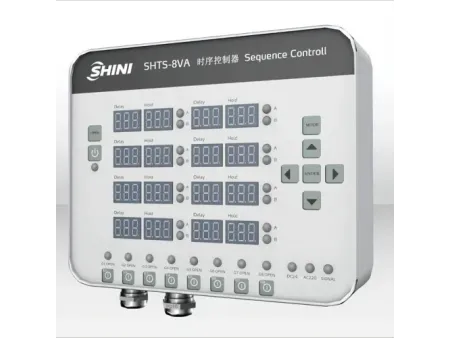

Hot Runner Integrated Sequential Timer Controller
Sequence injection timer for valve gate hot runner system
The hot runner integrated sequential timer controller is specifically designed for valve gate hot runner systems, enhancing the precision of your injection molding process. This controller allows for detailed management of the timing at which each nozzle injects resin, ensuring the sequences are perfectly aligned with the production requirements. Such accurate control is crucial when creating complex mold designs, as it helps maintain the integrity of each part and optimizes resin flow throughout the molding cycle. This device is instrumental in improving the efficiency and quality of molded components, making it an essential tool for manufacturers aiming to reduce waste and increase productivity in their molding operations.
- Each controller zone can be adjusted independently, allowing for tailored control over up to 8 gates.
- Maintains settings and data even when powered off, ensuring consistent operation across cycles.
- Features manual on/off capabilities for individual or all gates, providing flexibility and immediate control.
- Supports both DC24V and AC220V outputs, compatible with various system requirements.
- Capable of controlling both air valves and oil valves, enhancing its adaptability to different types of hot runner systems.
- Offers precise control over timing with adjustments from as little as 0.01 seconds up to 999 seconds, allowing for fine-tuning of the injection process.
- The unit is housed in a robust aluminum casing that ensures durability and effective heat dissipation.
- All units in this series are CE certified, meeting international safety and quality standards.
This sequential timer controller is an essential tool for manufacturers using advanced hot runner systems, especially in applications where the sequencing and timing of the injection process are critical for product quality. Its intelligent features and robust design make it a reliable choice for improving the efficiency and precision of plastic injection molding operations.
| Model | ||
| Control zones | 4 | 8 |
| Power switch capacity (A) | 3 | 3 |
| Output voltage of solenoid valve | DC24V/AC220V | DC24V/AC220V |
| Connector | Harting-16Px1 | Harting-16P×1 |
| Weight (kg) | 3.7 | 3.8 |
| Dimensions H×W×D (mm) | 180×220×61 | 180×220×61 |
