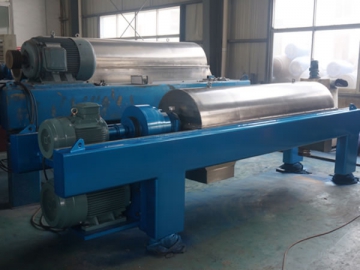

Horizontal Decanter Centrifuge
Request a Quote
View All: http://foam-spraying.com
The horizontal decanter centrifuge is mainly used for the solid and liquid separation. It also can be used for the wastewater treatment, food dewatering and other fields.
This decanter centrifuge works by using different specific gravity of solid and liquid material, the strong centrifugal force is generated by the centrifuge, so that the solid and liquid can be separated.
Main Technical Data
| 1 | Model | ||||||
| 2 | Dimension | 1790x1080x 640mm | 2800x620x950mm | 2480x1260x860mm | 3420x820x1050mm | 2400x1420x920mm | 3640x1520x1000mm |
| 3 | Drum diameter | 220mm | 250mm | 300mm | 350mm | 400mm | 450mm |
| 4 | Drum length | 660mm | 1050mm | 300mm | 1480mm | 1200mm | 1940mm |
| 5 | Relative centrifugal force | 2839g | 2518g | 2963g | 2684g | 2420g | 2580g |
| 6 | Main motor power | 11kw | 11kw | 11kw | 15-22kw | 18.5-30kw | 30/45kw |
| 7 | Max. rotation speed | 4800r/m | 4200r/m | 4200r/m | 3700r/m | 3500r/m | 3200r/m |
| 8 | Capacity | 02-2 m³/h | 1-5m³/h | 1-6m³/h | 2-10m³/h | 4-14 m³/h | 8-20m³/h |
| 9 | Weight | 900 kg | 1460kg | 1780kg | 2180kg | 2420kg | 3360kg |
