Three-Phase Decanter Centrifuge
Request a Quote
View All: http://foam-spraying.com

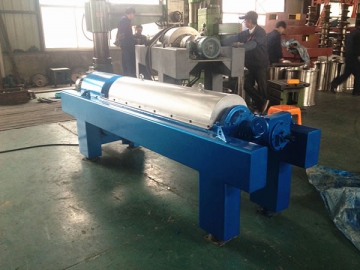

The 3 phase decanter centrifuge machine uses centrifugal sedimentation principle to separate the solid, liquid (water) and liquid (oil) in the suspension continuously.
This decanter centrifuge is widely used to separate oil, water and other materials in oil and mining industry. Its speed can be changed through pulley and belt. And it can realize infinite speed variation in a large scope.
Main Technical Data
| 1 | Model | |||||
| 2 | Dimension | 2900x700x 900mm | 3100x1000x 1250mm | 3900x1100x 1350mm | 4300*1600*1350mm | 4500*1650*1350mm |
| 3 | Drum diameter | 250mm | 350mm | 400mm | 500mm | 580mm |
| 4 | Drum length | 1050mm | 1460mm | 1750mm | 2000mm | 2320mm |
| 5 | Relative centrifugal force | 2465g | 2400g | 2700g | 2515g | 2363g |
| 6 | Main motor power | 15 kw | 30kw | 37kw | 55 11kw | 75 11kw |
| 7 | Max. rotation speed | 4200r/m | 3500r/m | 3500r/m | 3000r/m | 2700r/m |
| 8 | Capacity | 1-1.5 m3/h | 2-4 m3/h | 2-6 m3/h | 5-9 m3/h | 4-12 m3/h |
| 9 | Weight | 1500kg | 3800kg | 450 0kg | 5500kg | 6400kg |
| 10 | Material | SS304 | SS304 | SS304 | SS304 | SS304 |
