Solid Carbide Slitting Saw Manufacturer

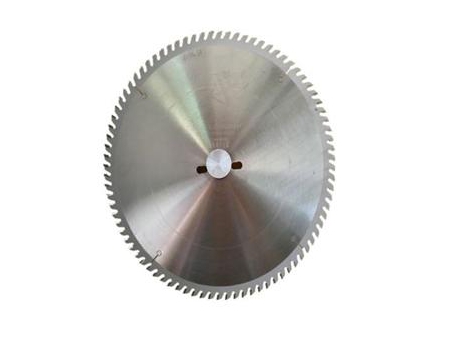

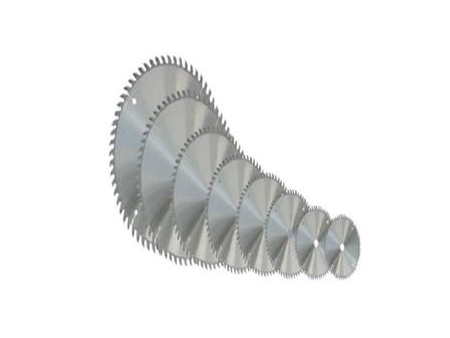

Solid Carbide Slitting Saw

Request a Quote

View All: http://metalworking-tool.com/9-3-emh03-solid-carbide-drill-din6539.html

Application

solid carbide slitting saws are used to cut solid materials such as wood, furniture, artificial board, aluminium alloy, aluminum profiles, heat sinks, plastics, plastic steel and more.

Material

hard alloy

Features

Ultrathin: thickness can reach 0.10mm
Tiny: external diameter can reach 0.12mm
High precision: ±0.003 thickness and 0.005 face runout is available
Customized service for non-standard solid carbide or welding tungsten carbide cutting tools is available.

Parameter

External Diameter D（mm）		Thickness Range b（mm)		Selectable Inner Diameter d（mm）		Selectable Number of teeth z（T）
Basic Size	Tolerance js12	Basic Size	Tolerance js12	Basic Size	Tolerance js12	Selectable Number of teeth z（T）
12	±0.009	0.10~10	±0.012	5 6	0.012	12 18 24 30 36 40
16	±0.009	0.10~10	±0.012	5 6	0.012	12 18 24 30 36 40 50
20	±1.105	0.10~10	±0.012	6 8	0.012	18 24 30 36 40 50 60 72 80
25	±1.05	0.10~10	±0.012	6 8	0.015	18 24 30 36 40 50 60 72 80
32	±0.125	0.10~10	±0.012	8 10 12.7 13	0.015	24 30 36 40 50 60 72 80
40	±0.125	0.15~10	±0.012	8 10 12.7 13	0.015	30 36 40 50 60 72 80 90
45	±0.125	0.20~10	±0.012	12.7 13 16	0.018	36 40 50 60 72 80 90 100
50	±0.125	0.20~10	±0.012	12.7 13 16	0.018	40 50 60 72 80 90 100 120
60	±0.150	0.20~10	±0.012	12.7 13 16 22 25.4	0.018	40 50 60 72 80 90 100 120
63	±0.150	0.30~10	±0.012	12.7 13 16 22 25.4	0.018	40 50 60 72 80 90 100 120
70	±0.150	0.40~10	±0.012	12.7 16 22 25.4 27	0.021	40 50 60 72 80 90 100 120
75	±0.150	0.40~10	±0.012	16 22 25.4 27	0.021	40 50 60 72 80 90 100 120
80	±0.150	0.50~10	±0.012	22 25.4 27	0.021	50 60 72 80 90 100 120 150
100	±0.175	0.80~10	±0.012	22 25.4 27	0.021	50 60 72 80 90 100 120 150
125	±0.200	1.2~10	±0.015	22 25.4 27 32	0.021	50 60 72 80 90 100 120 150
150	±0.200	1.4~10	±0.015	25.4 27 32	0.021	50 60 72 80 90 100 120 150
180	±0.300	1.6~10	±0.015	25.4 27 32	0.021	50 60 72 80 90 100 120 150
200	±0.400	3.0~10	±0.015	25.4 27 32 40	0.021	50 60 72 80 90 100 120 150 180
