3 Flute 45°Helix Carbide End Mill
Request a Quote
Application

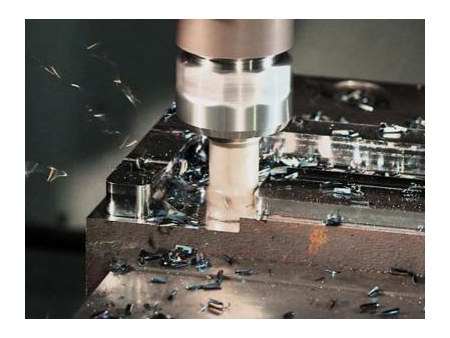

The carbide end mill is mainly used in milling machines for flat surfaces, side surfaces, groove shaping, and workpiece cutting.
Material
carbide (hard metal)
Parameters
| Shank Diameter mm (D1) | Tolerance(mm) |
| Less than 10 | 0-0.002 |
| More than 10 | 0-0.0025 |
| Length | Cutter Diameter mm (D) | Shank Diameter mm (D1) | Flute Length mm (L1) | Overall Length mm (L) |
| Standard | 1 | 4 | 3 | 50 |
| 1.5 | 4 | 4.5 | 50 | |
| 2 | 4 | 6 | 50 | |
| 2.5 | 4 | 7 | 50 | |
| 3 | 4 | 8 | 50 | |
| 4 | 4 | 11 | 50 | |
| 5 | 6 | 13 | 50 | |
| 6 | 6 | 15 | 60 | |
| 7 | 8 | 18 | 60 | |
| 8 | 8 | 20 | 75 | |
| 9 | 10 | 23 | 75 | |
| 10 | 10 | 25 | 75 | |
| 11 | 12 | 28 | 75 | |
| 12 | 12 | 30 | 75 | |
| 16 | 16 | 40 | 100 | |
| 20 | 20 | 40 | 100 | |
| Stretched | 4 | 4 | 16 | 75 |
| 5 | 6 | 20 | 75 | |
| 6 | 6 | 25 | 75 | |
| 8 | 8 | 30 | 75 | |
| 4 | 4 | 20 | 100 | |
| 5 | 6 | 25 | 100 | |
| 6 | 6 | 30 | 100 | |
| 8 | 8 | 35 | 100 | |
| 10 | 10 | 40 | 100 | |
| 12 | 12 | 45 | 100 | |
| 8 | 8 | 40 | 150 | |
| 10 | 10 | 50 | 150 | |
| 12 | 12 | 50 | 150 | |
| 16 | 16 | 70 | 150 |
