Steel Slab

Request a Quote

View All: http://steelcoilmanufacturer.com/7-steel-slab.html

Semi-Finished Steel

Thickness (Tolerance) 200-230mm (±5mm)

Width (Tolerance) 900-1260mm (±5mm)

Length (Tolerance) 8000-11000mm (0-80mm)

Sizes 200-230mm × 1010mm/1260mm × 8000-11000mm.

Width Tolerance Maximum width including tolerance is 1270mm, with typical widths of 1010mm or 1260mm.

Length Preference Standard length is 11000mm; shorter slabs must have a minimum length of 8000mm.

Minimum order quantity 20 tonnes

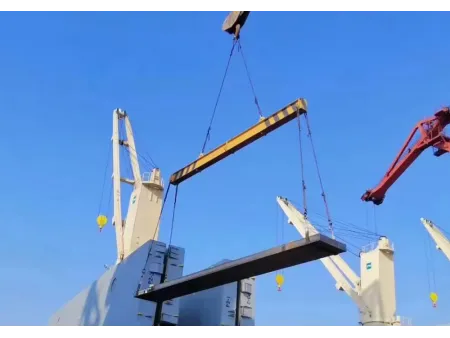

Worldwide delivery from the Philippines available upon request

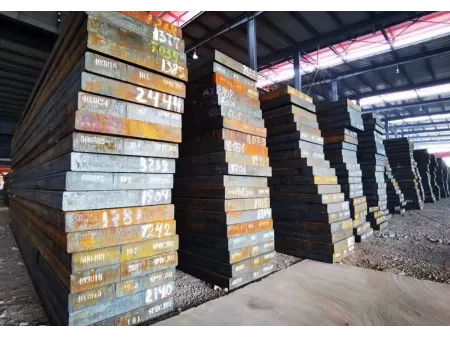

Steel slabs are semi-finished products with rectangular cross-sections, typically produced through continuous casting or rolling of ingots. They serve as the foundational material for manufacturing flat steel products such as hot-rolled coils, plates, and sheets. Steel slabs are commonly used in industries such as construction, automotive, and machinery, steel slabs are essential for creating structural components, pipelines, and various metal goods.

Chemical Composition (Melting Analysis)

Grade	C	Si	Mn	P	S	Alt
SPHC	≤0.06	≤0.05	0.10-0.25	≤0.025	≤0.025	0.020-0.050
Q195	≤0.08	≤0.05	0.15-0.30	≤0.025	≤0.025	0.020-0.045
Q235B	0.10-0.20	0.10-0.20	0.30-0.45	≤0.030	≤0.030	0.020-0.040
Remarks: Residual elements SPHC: Cr, Ni, Cu≤ 0.15 %, As, Sn ≤ 0.05 % Q195/Q235B: Cr, Ni, Cu ≤ 0.15 %, N ≤ 0.008 % Chemical composition tolerance as per GB/T 222 (SAE-J-409) "Alt" represents the total aluminum content, and the lower limit of dissolved aluminum (Als) is 0.015
