Silicon Steel Sheet and Coil
Flat-Rolled Steel
- Thickness 0.5-0.65mm
- Width 800-1250mm
- Coil inner diameter Ø508/Ø608mm
- Coil weight 5-8t, or customizable
- Minimum order quantity 20 tonnes
Worldwide delivery from the Philippines available upon request

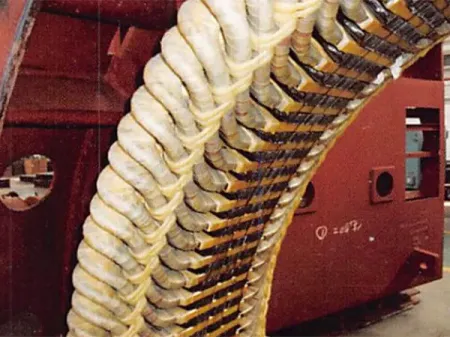

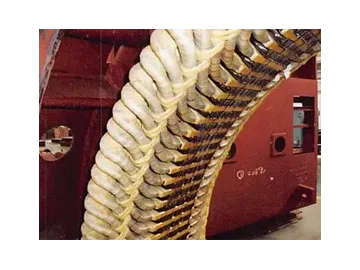

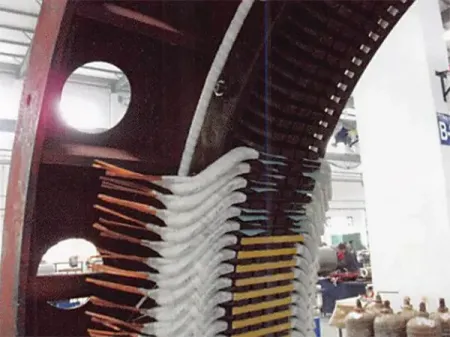

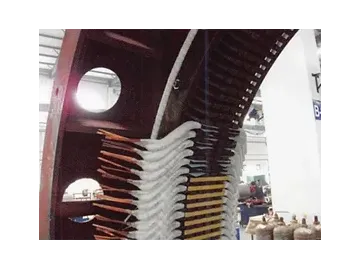

Electrical steel, also known as silicon steel, is a specialized material widely used in motors, generators, transformers, and various electrical devices due to its soft magnetic properties. It typically contains silicon in varying amounts, categorized into low-silicon grades (less than 0.5% silicon) and high-silicon grades (0.5% to 6.5% silicon), enhancing its magnetic properties.
Depending on the grain orientation, electrical steel is classified into two main types: grain-oriented electrical steel (GOES) and non-grain-oriented electrical steel (NGOES).
- Grain-Oriented Electrical Steel (GOES)
This type of steel has superior magnetic performance in a specific direction. It offers high magnetic induction and low core loss, making it ideal for cores in transformers, amplifiers, stabilizers, relays, and electromagnetic switches. - Non-Grain-Oriented Electrical Steel (NGOES)
NGOES has uniform magnetic properties in all directions, offering excellent magnetic induction and reduced energy loss. It is widely used for components that generate or operate within rotating magnetic fields, such as generators, electric motors, and household appliances like washing machines, fans, and refrigerator compressors.
Electrical steel is engineered for optimal magnetic and mechanical performance. Some main characteristics include:
- Magnetic Properties
Low core loss, high magnetic induction, and minimal magnetic aging ensure efficiency in energy conversion and reduced heat generation. - Processing Capabilities
The material supports high-precision punching and cutting, ensuring excellent surface finish and dimensional accuracy for complex designs.
This combination of properties makes electrical steel indispensable for modern energy-efficient and high-performance electrical devices.
Specifications of Electrical Steel
| Steel Sheet | Nominal thickness:0.5-0.65mm Nominal witdh:800-1250mm |
| Steel Coil | Inner diameter:Ø508 or Ø608mm |
| Weight <10t,or customizable | |
| Grade | 50W470,50W540,50W600,50W700,50W800 non-oriented electric steel coil for energy efficient motor |
| Edge | Rolled edge (Trimmed during pickling,left untrimmed during annealing) |
Tolerances of Dimensions
| Item | Standard | Internal control |
| Permissible Thickness Tolerance | 0.50±0.040mm | 0.50±0.040mm |
| Longitudinal Thickness Tolerance | 0.025mm | 0.015mm |
| Transverse Thickness Tolerance | 0.020mm | 0.010mm |
Magnetic Properties
| Grade | Theoretical Density (kg/dm³) | Iron Loss P15/so(W/kg) | Magnetic Flux Density Bso(T) | Min. Stacking Factor | ||
| Standard | Internal Control | Standard | Internal Control | |||
| 50W470 | 7.70 | ≤4.7 | ≤4.0 | ≥1.64 | ≥1.64 | 0.97 |
| 50W530 | 7.70 | ≤5.3 | ≤4.3 | ≥1.65 | ≥1.65 | |
| 50W600 | 7.75 | ≤6.0 | ≤4.7 | ≥1.66 | ≥1.66 | |
| 50W700 | 7.80 | ≤7.0 | ≤5.3 | ≥1.69 | ≥1.69 | |
| 50W800 | 7.80 | ≤8.0 | ≤6.0 | ≥1.70 | ≥1.70 | |
Coating Quality
| Coating Thickness | 0.8-1.2g/m² |
| Surface Insulation Resistance | ≥2009/mm² |
| Coating Adhesion | Bend diameter of 10 mm,Grade A |
| Corrosion Resistance | Surface corrosion area ≤5% after 5 hours of testing |
| Heat Resistance | No peeling after 2 hours at 750°C under nitrogen protection |
Chemical Composition of Cold Formed Steel
| Grade | C | Mn | P | S |
| SPHC | ≤0.15 | ≤0.60 | ≤0.050 | ≤0.050 |
| SPHD | ≤0.10 | ≤0.50 | ≤0.040 | ≤0.040 |
| SPHE | ≤0.10 | ≤0.50 | ≤0.030 | ≤0.035 |
Mechanical Properties
| Grade | Yield Strength (MPa) | Compressive Strength (MPa) | Elongation (%) | Hardness (HV) | Repeated Bending |
| 50W470 | 260-269 | ≥380 | ≥16 | ≥137 | ≥30 |
| 50W530 | 262-273 | ≥360 | ≥16 | ≥130 | ≥30 |
| 50W600 | 265-282 | ≥340 | ≥21 | ≥129 | ≥30 |
| 50W700 | 270-288 | ≥320 | ≥22 | ≥128 | ≥30 |
| 50W800 | 280-290 | ≥300 | ≥22 | ≥127 | ≥30 |
Widely utilized in energy-efficient motors and power generators, designed to optimize performance and reduce energy consumption in various industries.
