Steel I Beam
Request a Quote
Structural Steel
- Model I14-I22b
- Length of Steel Beam 6000mm/9000mm/12000mm
- Minimum order quantity 20 tonnes
Worldwide delivery from the Philippines available upon request

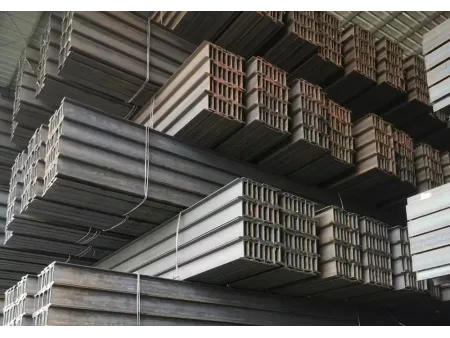

Steel I beams, also known as H-beams, are structural steel components designed for superior strength and load-bearing capacity. Produced through hot rolling, they feature a distinctive "I" shape that provides excellent support for construction frameworks, bridges, and heavy machinery. Their versatility makes them a widely used product in both commercial and industrial projects.
Applications
Steel I beams are widely used in engineering and construction projects, including building frameworks, bridge construction, automotive manufacturing, rail transportation, and support structures.
Specifications
| Steel Grade | Model No. | Size | ||
| Height (mm) | Width (mm) | Thickness (mm) | ||
| Q235B | 10# | 100 | 68 | 4.5 |
| Q235B | 12# | 120 | 74 | 5.0 |
| Q235B | 14# | 140 | 80 | 5.5 |
| Q235B | 16# | 160 | 88 | 6.0 |
| Q235B | 18# | 180 | 94 | 6.5 |
| Q235B | 20#A | 200 | 100 | 7.0 |
| Q235B | 20#B | 200 | 102 | 9.0 |
| Q235B | 22#A | 220 | 110 | 7.5 |
| Q235B | 22#B | 220 | 112 | 9.5 |
