700W Fiber Laser Metal Cutting Machine
Request a Quote
ACCURL's 700w fiber laser cutting machine team has introduced its latest in tube and profile processing technology, with a fiber laser cutting system. Technological innovation has brought us the Smart KJG series, which features an exceptional reliability and high beam quality, ensuring its place as a leader on the market.
Standard Equipment
- User friendly Cypcut Windows CAD/CAM CNC control unit.
- IPG YLS-700W Ytterbium Laser Resonator
- Unique features:
- Very easy to operate.
- Quick and easy installation.
- Low investment and operating costs.
- The most cost-efficient solution for every requirement.
- Flexible beam path
- High output power
- High optical quality
- Up to 00 faster cutting
- High wall plug efficiency (>0)
- Copper, brass cutting ability
- Advanced Raytools cutting head (with air cross blast).
- High performance and high accuracy rack and pinion system.
Applicable Industries
- Kitchen cabinets
- Door processing
- Lighting hardware
- Chassis cabinets
- Advertising signs
- Elevator manufacturing
- Sheet metal processing
- Home appliances
Specifications
| Laser power | IPG 700W Fiber Laser |
| Laser source | America / Russia IPG fiber laser resonator |
| Processing surface(L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 12kW |
| Position accuracy X, Y and Z axis | 0.03mm |
| Repeat position accuracy X, Y and Z axle | 0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 1g |
| Max load of working table | 800kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Cutting Thickness Limit
| Material | Cutting Thickness Limit |
| Carbon steel | 8mm |
| Stainless steel | 5mm |
| Aluminum | 3mm |
| Brass | 3mm |
| Copper | 2mm |
Detailed Pictures

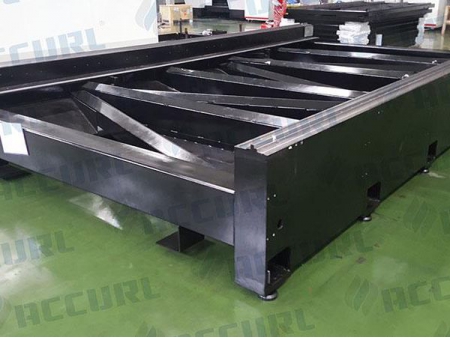

- Framework by heat treatment

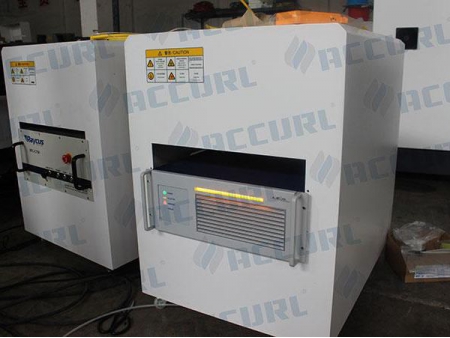

- IPG 700w Fiber Laser Power

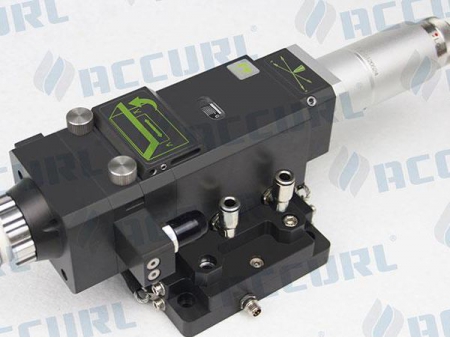

- Laser Cutting head

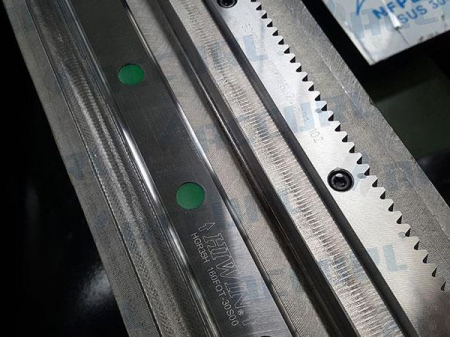

- Linear guide and Rack

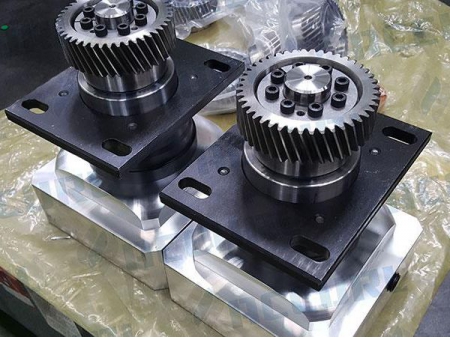

- Shimpo reduction gears from Japan
