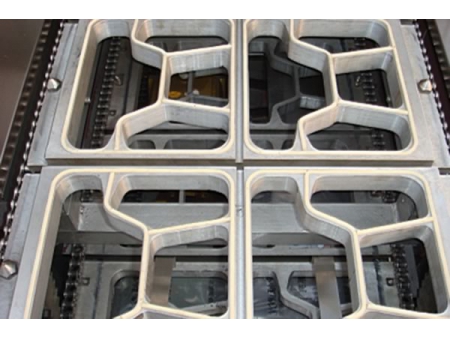

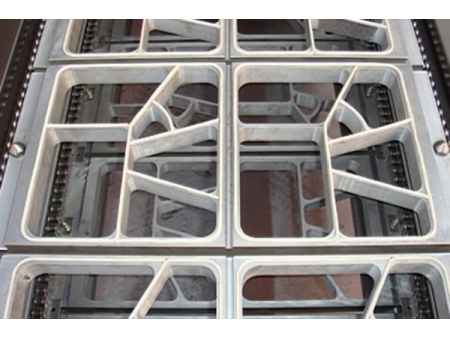

The sealing machine adopts gap transmission method and provides good resistance. The mold is made from high-quality anti-acid and anti-rust aluminum material. The machine surface is manufactured from 304 stainless steel. The sealing machine also has an anti-rust steel frame and stainless steel chain. It is compliant with food hygiene standard and receives good recognition in China market. With the assistance of an intelligent temperature control system and pneumatic sealing device, the heat sealer possesses firm seal, high leakproofness and low failure rate.

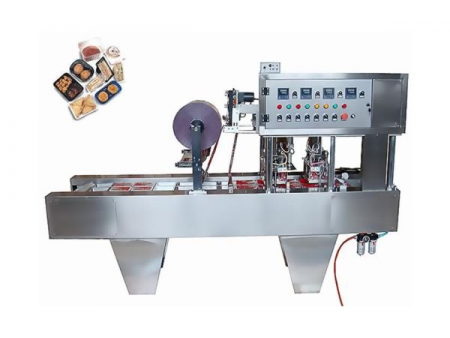

Main Functions of Compartment Food Container Sealing Machine
1. Manual container feeding
2. Automatic sealing
3. Automatic coding
4. Automatic photoelectric aligning
5. Horizontal and vertical film cutting
6. Automatic container discharging

Technical Parameters of Compartment Food Container Sealing Machine (135×115×35mm)
Production capacity: 2400-3000 containers/h (adjustable)
Power: 4 KW
Power supply: 380V /50Hz
Dimensions: 2400mm×850mm×1450mm
Weight: Approx. 800kg

Main Configurations of Compartment Food Container Sealing Machine
(1) Drive System
Main parts of the drive system include motor, gearbox, drive chain, positioning device, etc. Additionally, stepless speed regulation is applied.

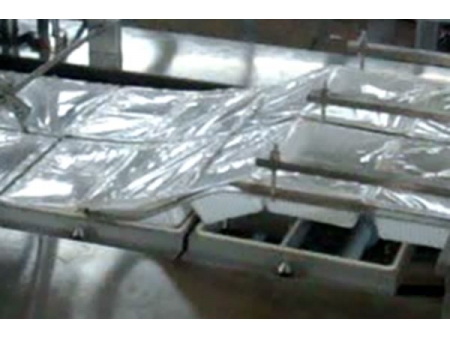

(2) Film Feeding System
The film feeding system consists of film roll device, film draw and control device and guiding roll.

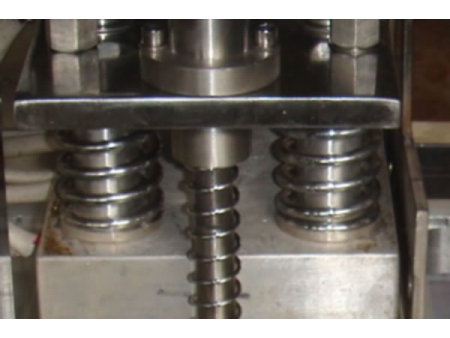

(3) Sealing System
Main elements include heating device, intelligent thermostatic control device, temperature sensor, pneumatic sealing device, heat-seal board, etc.

(4) Coding System
Printer, ribbon and heating device are outfitted for printing the date of manufacture and other related data.

(5) Cutting System
Horizontal cutting device and vertical cutting device are both equipment, providing accurate cutting and long service life.

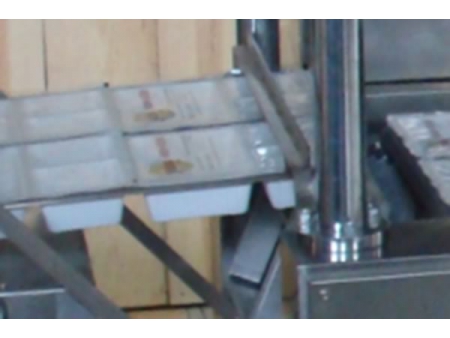

(6) Container Discharging System
Main parts are container support frame, jack-up device and container holder. When the sealing is done, packed containers will be placed on a rack so that workers can easily take.

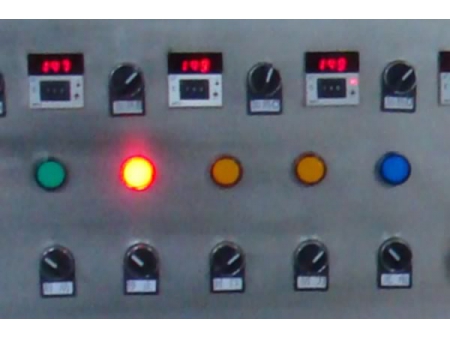

(7) Electric Control System
This system consists of control circuit, power supply circuit, electric protection and emergency device. Switches are imported from Japan and Omron relay is used.
