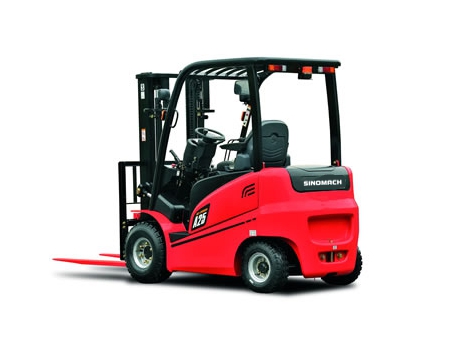

Electric Forklift CPD15-AC3

Electric Forklift  CPD15-AC3
Request a Quote
  • Lift height 3000mm
  • Rated capacity 1500Kg
  • Operating weight 2940Kg
  • Ergonomically designed cab for increased operator comfort
  • Parking brake design meets ISO3691 standard.
  • Conventional color
  • Battery cover with auto lock spring for easy battery replacement
  • New type advanced AC controller
  • Easy opened counter-weight cover is adopted to protect internal controller from water and dust.
  • Advanced transverse layout driving component
  • Sideway battery changing option enables battery to be replaced easily.
  • Battery with lifting hooks removes the need for equipping a trolley. The battery can be put on ground to save space and cost.
  • Big LED dashboard, fault code shown in English.
  • Large-sized rubber pad
Product model CPD15-AC3
Power type Electric
Length×Width×Height(mm) 2098×1120×1976
Operating weight(Kg) 2940
Rated capacity(Kg) 1500
Load center(mm) 500
Lift height(mm) 3000
Fork size(mm) 920×100×35
Turning radius(mm) 1900
Battery voltage (V/AH) 48/420
Battery weight (Kg) 760
