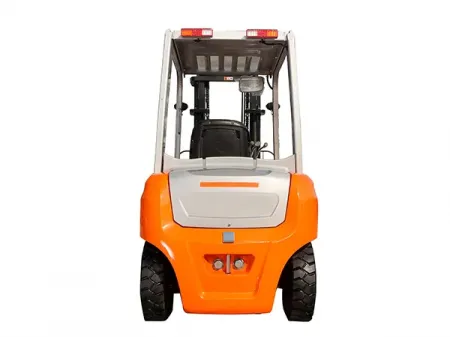

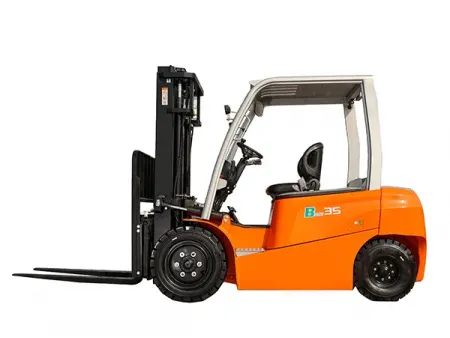

B35 Electric Forklift
Request a Quote
Lithium battery forklift truck with rated load capacity of 3500kg
- Rated load capacity
3500kg - Load center distance
500mm - Driving mode
Seated - Overall length (with forks)
3757mm
Specifications
| Power type | Lithium battery |
| Rated load capacity | 3500kg |
| Load center distance | 500mm |
| Driving mode | Seated |
| Overall length (with forks) | 3757mm |
| Overall length (without forks) | 2800mm |
| Overall width | 1232mm |
| Mast lowered height | 2149mm |
| Overhead guard height | 2105mm |
| Max. working height | 4183mm |
| Wheelbase | 1900mm |
| Front overhang | 455mm |
| Rear overhang | 464mm |
| Front wheel track width | 1005mm |
| Rear wheel track width | 988mm |
| Min. ground clearance | 140mm |
| Min. turning radius | 2450mm |
| Standard lifting height | 3000mm |
| Fork adjustment range | 260-1100mm |
| Mast tilt angle (front/rear) | 6°/12° |
| Max. lifting speed (no load) | 380mm/s |
| Max. lifting speed (full load) | 300mm/s |
| Max. travel speed (no load) | 12km/h |
| Max. travel speed (full load) | 12km/h |
| Max. gradeability (full load) | 15% |
| Total machine weight | 4580kg |
| Number of wheels | 2/2 |
| Tire type (front/rear) | Pneumatic tire/pneumatic tire |
| Tire size (front) | 28×9-15 |
| Tire size (rear) | 6.50-10 |
| Service brake | Hydraulic brake |
| Parking brake | Manual brake |
| Drive motor power | 13.1kW |
| Hydraulic pump motor power | 16.5kW |
Features
- Delivers zero-emission operation, completely eliminating exhaust pollution. Ideal for indoor warehouses, food processing facilities, and environments with strict hygiene or environmental requirements.
- The electric drive system ensures ultra-low noise, allowing smooth and quiet operation even in noise-sensitive areas such as residential zones, schools, or indoor logistics centers.
- Simplified electric powertrain design reduces maintenance needs by eliminating engine and gearbox components, cutting material and labor costs while minimizing downtime.
- Adjustable lifting height provides flexibility for various loading, unloading, and stacking applications from low-clearance areas to high-shelf storage, ensuring efficient and safe handling in all conditions.
Optional Accessories
Roll clamp, lifting arm, carton clamp, rotating flat clamp, string rod, pusher, load stabilizer, weighing system, bucket, multi-purpose bucket clamp, side fork, hook, soft clamp, rotating fork, extended fork, oil drum clamp, fork extension sleeve, scrap fork, tilting fork, load ejector, etc.
