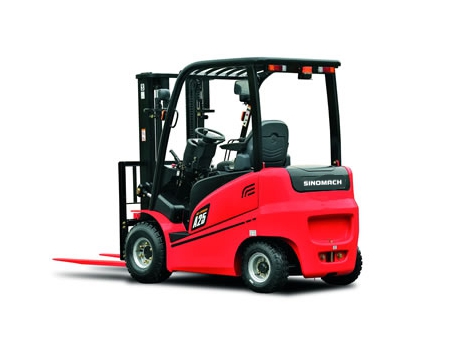

Electric Forklift CPD35-AC3
Request a Quote
- Lift height 3000mm
- Rated capacity 3500Kg
- Operating weight 5450Kg
- Ergonomic cab for increased operator comfort
- Parking brake design meets ISO3691 standard.
- Conventional color
- Battery cover with auto lock spring for easy battery replacement
- New type advanced AC controller
- Easy opened counter-weight cover is adopted to protect internal controller from water and dust.
- Advanced transverse layout driving component
- Sideway battery changing option enables battery to be replaced easily.
- Battery with lifting hooks removes the need for equipping a trolley. The battery can be put on ground to save space and cost.
- Big LED dashboard, fault code shown in English.
- Large-sized rubber pad
| Product model | CPD35-AC3 |
| Power type | Electric |
| Length×Width×Height(mm) | 2582×1302×2186 |
| Operating weight(Kg) | 5450 |
| Rated capacity(Kg) | 3500 |
| Load center(mm) | 500 |
| Lift height(mm) | 3000 |
| Fork size(mm) | 1070×125×50 |
| Turning radius(mm) | 2310 |
| Battery voltage(V/AH) | 80/500 |
| Battery weight(Kg) | 1530 |
