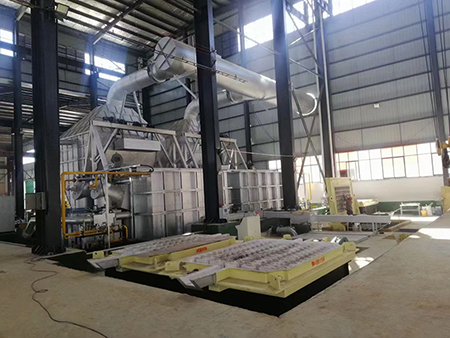

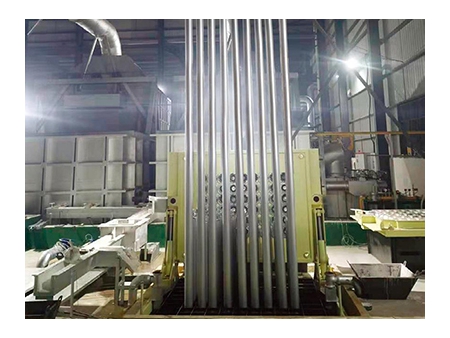

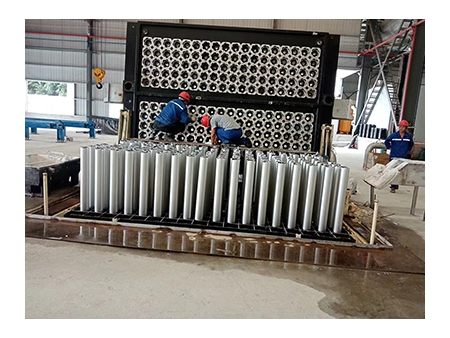

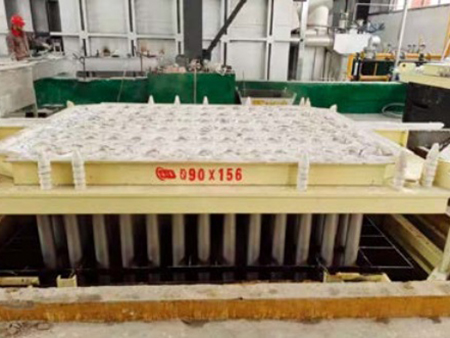

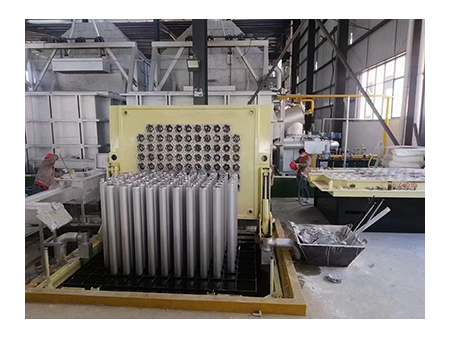

The main function of the aluminum billet casting table is to transform high-quality molten aluminum and aluminum alloy, processed from the smelting process, into semi-finished aluminum and aluminum alloy products. This is achieved by continuously pouring the molten aluminum into the crystallizer, where it solidifies and forms billets with a consistent cross-sectional shape.

The casting table consists of several integral components, including the crystallizer, a molten aluminum distribution system, a cooling water distribution system, and an ingot introduction system. Additionally, it features a control unit and a robust hydraulic system to ensure precise operation and consistency in billet formation. These components work together seamlessly to maintain the efficiency and quality of the casting process, making the aluminum billet casting table an important piece of equipment in aluminum billet production.

Features

  • The rings used in the aluminum billet casting table are made of high-quality graphite, and all refractory materials are sourced from well-known brands.
  • The billet head features automatic alignment and is made of cast iron.
  • The water tank and billet base are connected by four bolts, making assembly and disassembly easy.
  • All components are designed using SolidWorks, undergo finite element analysis, and are precision machined with CNC technology.
  • Equipped with Fuji brand inverters to achieve variable frequency speed control.
  • The casting machine speed is adjustable from 60 to 850 mm/min.

Technical Specifications

  • Round billet: ⌀65mm (2.5"inch) → ⌀505mm (20"inch)
  • Square billet: 75mm×75mm → 320mm×320mm
  • Hollow billet: ⌀150mm/⌀60mm → ⌀460mm/⌀190mm
  • Slab: 420mm×90mm → 1360mm×640mm
  • Maximum billet length: 12.5m
  • Trackless Frequency Control Wire Rope Drive Casting Machine
  • Automatic Casting Control System
